Various plastic film Laminating And slitting machines made in China

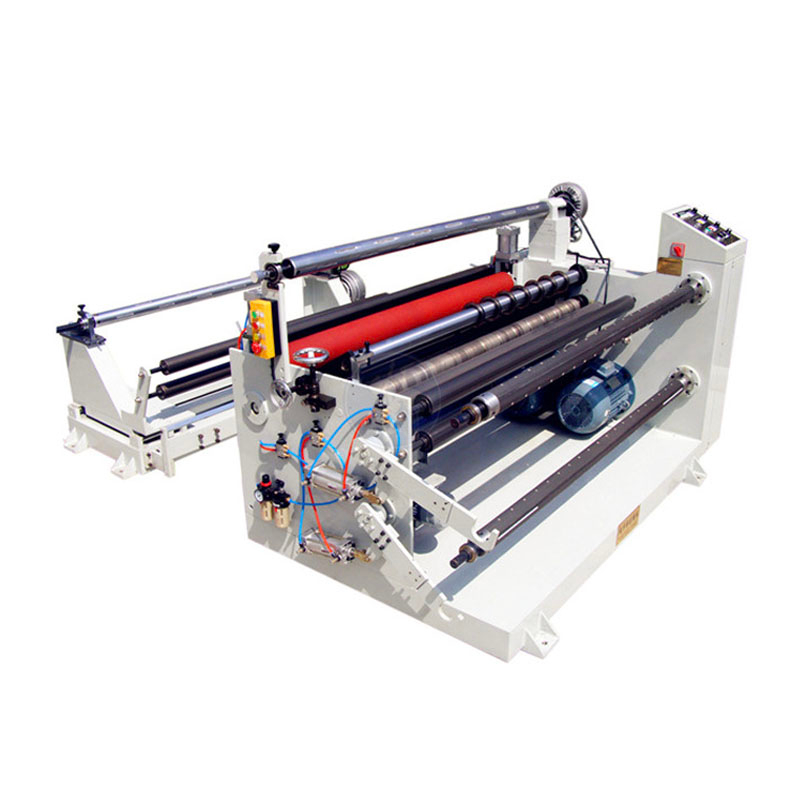

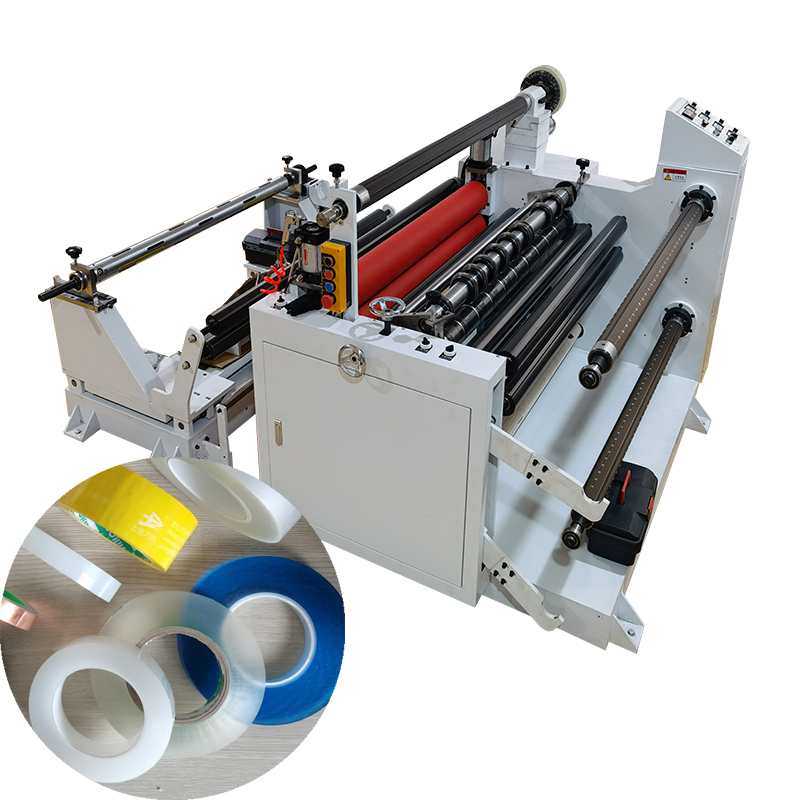

This machine is a high-precision, high-sensitivity slitting equipment. Rewinding and unwinding use pneumatic shafts, and the tension is controlled by a magnetic powder clutch. The unwinding and deviation correction adopts ultrasonic, which realizes automatic detection, automatic correction and automatic meter counting. Accurate slitting, fast speed, convenient operation and maintenance, etc.

Size:
Quantity:
  • HX-1300FQ
  • Hexin

1300fq1300fq41300fq21300fq3HX-1300FQ1600FQ-1◎Laminating function

◎EPC (edge positioning control) device:Ultrasonic sensor

◎Waste discharge function

◎Magnetic brake and clutch

◎Length counting function, automatically stop after it reaches the length you set.

◎2 rewinding inflatable shafts, easy for unloading materials.


It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.


Model

HX-1300FQ

HX-1600FQ

Max feeding width

1300mm

1600mm

Power

6kw

6kw

Speed

80米/分钟 (m/min)

80米/分钟 (m/min)

Size

2400x2000x1300mm

2400x2300x1600mm

Weight

1200kg

1500kg

Max.unwinding diameter

800mm

800mm

Max.rewinding diameter

450mm

450mm

Precision

±0.1mm

±0.1mm

Power

380V 50Hz

380V  50Hz
