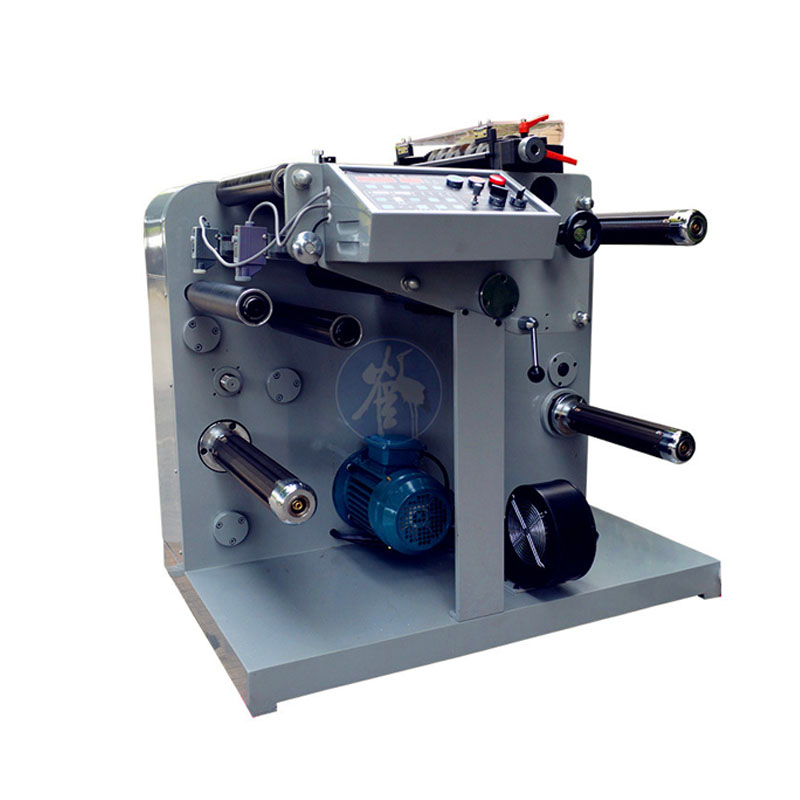

Automatic Printed Paper Roll Slitting Machine

Suitable for narrow paper slitting. It has the functions of automatic meter counting, automatic shutdown of set length and set quantity, and automatic photoelectric correction control for unwinding. The whole machine has the characteristics of compact structure, fast speed, high efficiency, accurate slitting, simple operation, stable operation, etc.

Size:
Quantity:
  • HX-320FQ
  • Hexin

◎Counting function: length counting and piece counting

◎EPC system (edge positioning control): photo cell

◎Slitting unit

◎Waste discharge blower

◎Two air rewinding  inflatable shafts

◎Tension control by magnetic brake & magnetic clutch

320FQ2320FQ1320FQ5320FQ3320FQ4

Slitting for label, conductive fabric, foam, diffuser,reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.


Model

HX-320FQ

Slitting speed

70m/min

Min.slitting width

20mm

Max. unwinding dia.

500mm

Max. rewinding dia.

480mm

Slitting precison

±0.10mm

Main power

0.75kw
