HX-320FQ
Hexin
◎Counting function: length counting and piece counting
◎EPC system (edge positioning control): photo cell
◎Slitting unit
◎Waste discharge blower
◎Two air rewinding inflatable shafts
◎Tension control by magnetic brake & magnetic clutch
Model | HX-320FQ |
slitting speed | 70m/min(depending on the material) |
Max Slitting Width | 320mm |
Max. Unwinding Diameter | 500mm |
Max. Winding Diameter | 480mm |
Min slitting width | 8mm |
Slitting tolerance | 0.2mm |
Slitting precision | 0.1mm |
Machine size(LxWxH) | 1100x900x1300mm |
Machine weight | 400kgs |
This is the finishing equipment. It is suitable for slitting roll/reel material such as paper, foil,
adhesive labels. It has functions of meter counter,
piece counter, length and quantity setting, automatically stopping, After reaching a preset number or
running meters .web guiding system and so on. This robust machine consisting of a solid steel frame,The structure is compact , fast, with high efficiency, easy and steady operation.
1.Machine frame made of coated steel
2.Electronics integrated in the machine frame
3.unwinding with pneumatic compressed shaft for 3" cores
4.rewinding with pneumatic compressed shaft for 3" cores
5.Web tension adjustable via magnetic powder clutch
6.Axial fan for suction of waste strip
7. The minimum slitting width is 8mm
8.unwinding is controlled by two photoelectric eyes
Standard configurations:
1.With 1pc 3’’ unwinding shaft, 2pcs 3’’ rewinding shafts( the size of shafts are optional).
2. With meter/number counter.
3. With two photoelectric eyes
4. With 8 sets of round slitting knives
5.Machine has blower fan to blow away the trimmed edge
slitting for label,paper,conductive fabric,foam,diffuser,reflector film, double-sided adhesive tape,nickel plate,PET,PC,PE insulation paper, copper /aluminum foil and all kinds
of adhesive tapes.
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

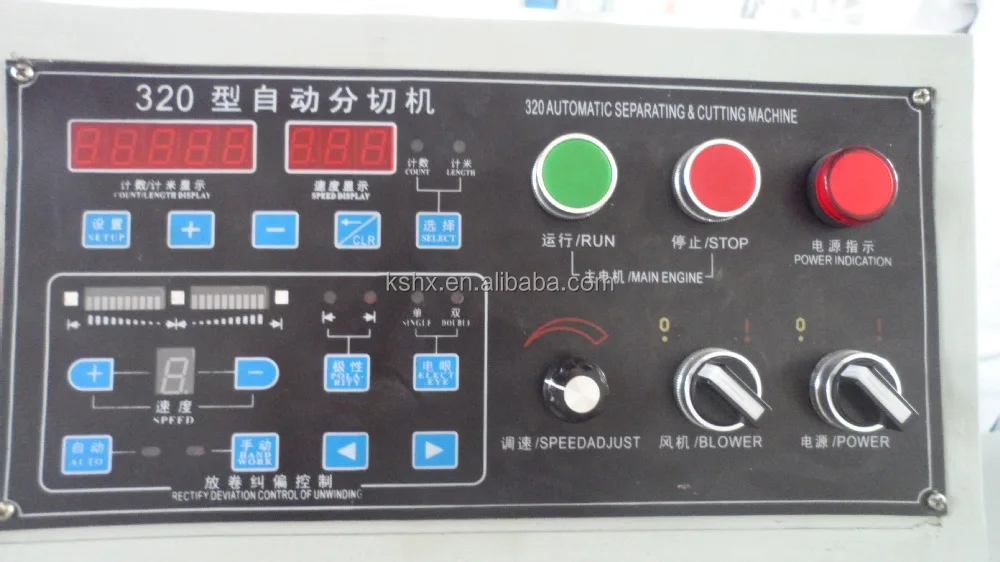

Control panel

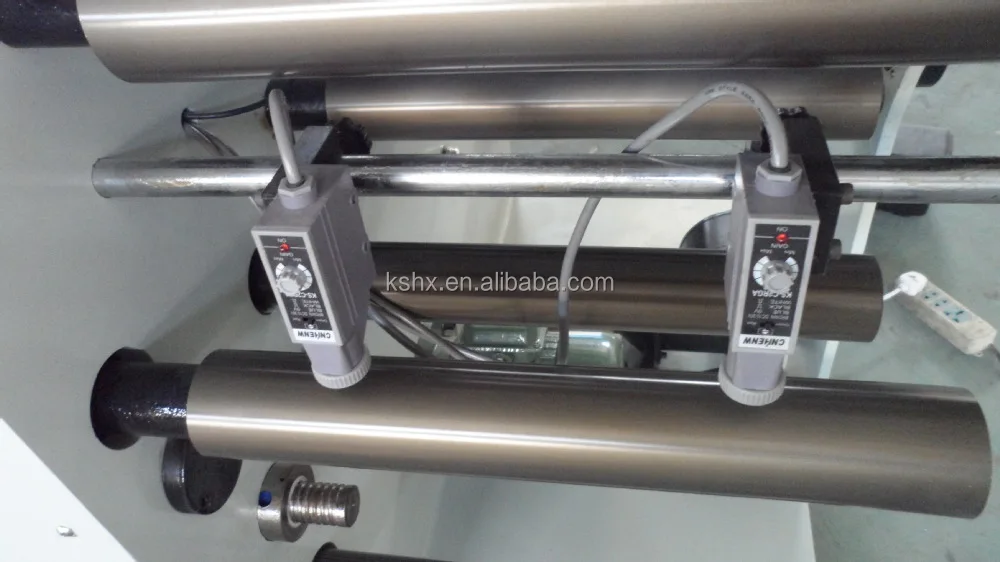

Photoelectric eyes

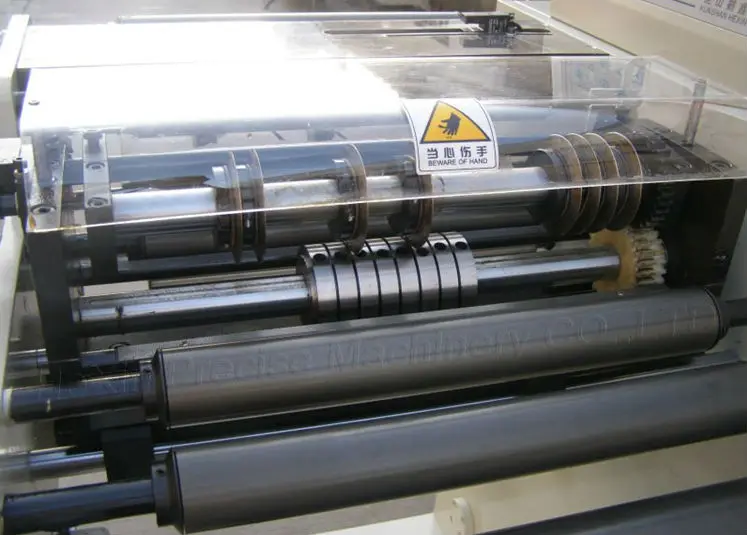

Slitting knives

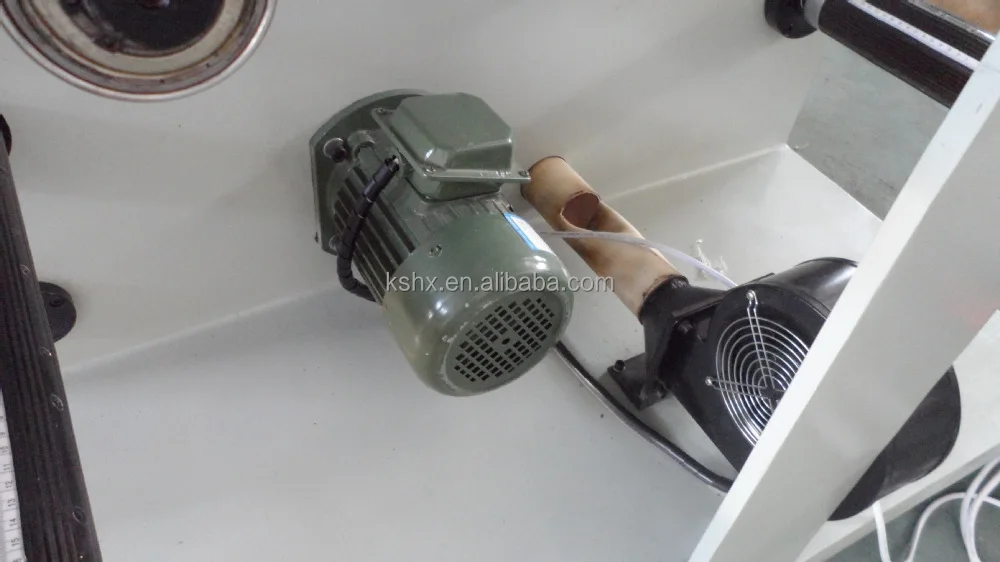

Motor and blower fan

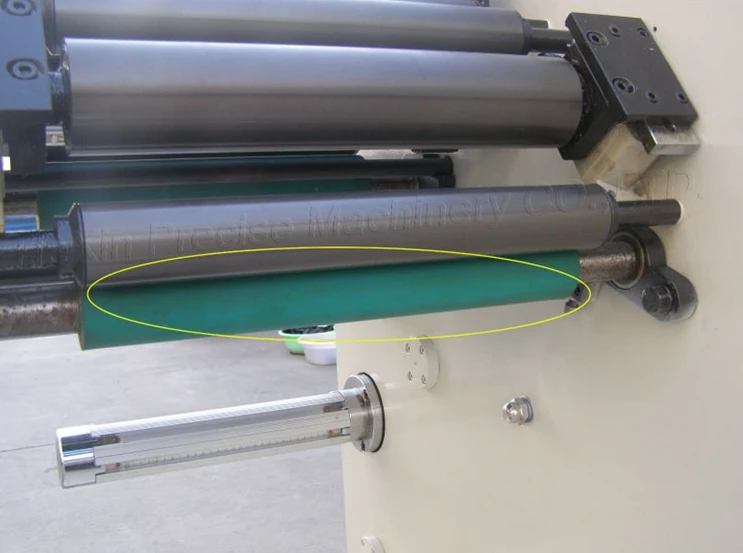

pressure roll (to prevent the material backward when machine stops)

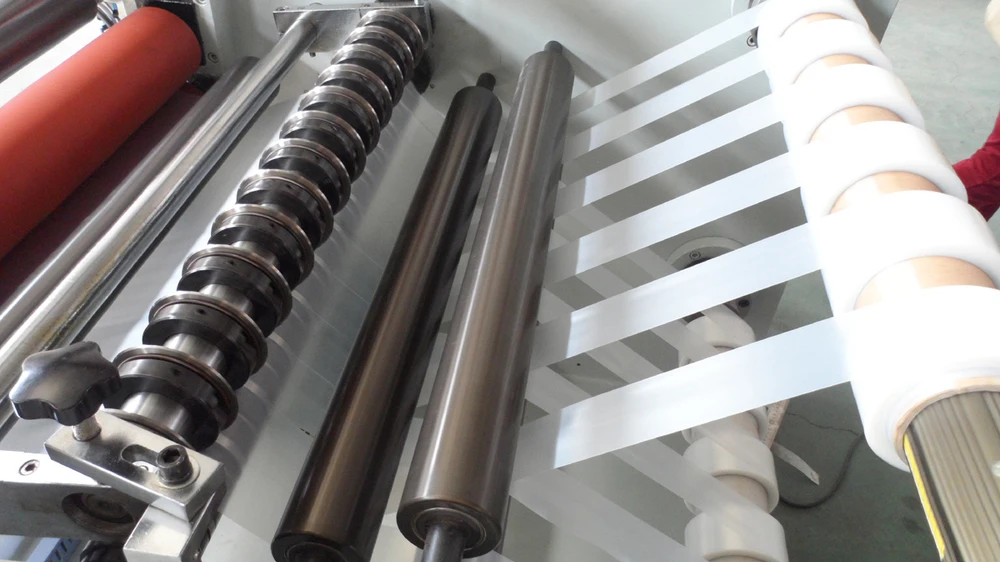

Rewinders

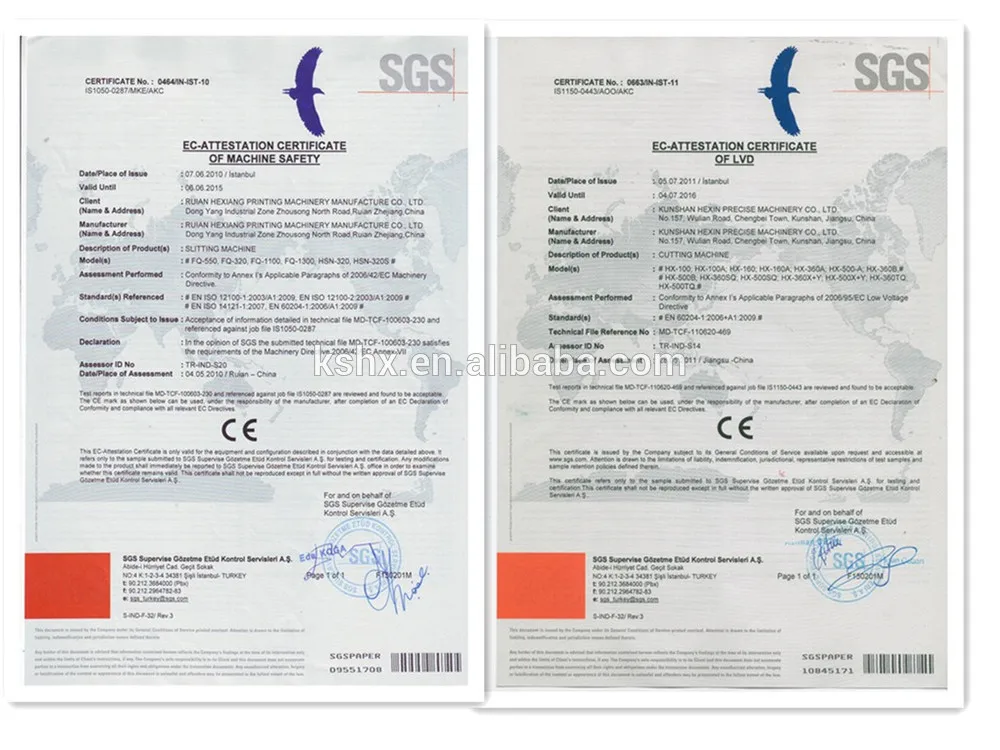

CE Certificaitons:
Packaging
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed
address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu,
China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by carfrom there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting machines,
laminating machines and rotary die cutting machines.
4. Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the incoming
materials to the finished products. Our factory has obtained CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize products
according to your requirement.
