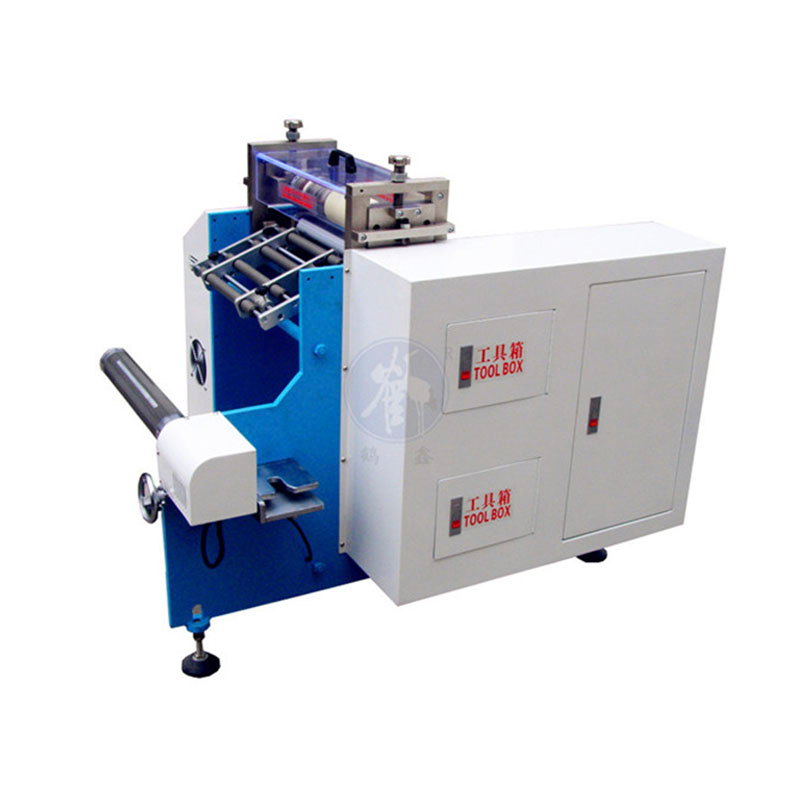

half automatic stretch film rewinding & slitting machine HX-320BT

Slitting for foot mat, silicon rubber, foam, diffuser, reflective film, double-sided adhesive tape, PET,PC,PE, insulation paper, copper/aluminum foil, conductive fabric, conductive foam and various of adhesive products.
Size:
Availability:
Quantity:
  • HX-320BF

  • Hexin

◎Applied by round slitting knife, the machine is applicable for kiss-cut linear-based materials. The cutting widths are easy for adjustment by the spacers among the knives.

◎Unwinding,cutting,rewinding run simultaneously. Rewinding rolls are neat

◎High precision, low waste, easy to operate.

320bf320bf5320bf2320bf1320bf4

Slitting for foot mat, silicon rubber, foam, diffuser, reflective film, double-sided adhesive tape, PET,PC,PE, insulation paper, copper/aluminum foil, conductive fabric, conductive foam and various of adhesive products.


Model

HX-320BF

Voltage

220V 50HZ

Power

750W

Slitting speed

0-60m/min

Max. feeding width

320mm

Min. slitting width

1mm

Precision

±0.05mm

Max. rewinding diameter

350mm

Machine size (L*W*H)

1500*1000*1000mm

N.W.

350kg


All kinds of plastic film

分条机样品
