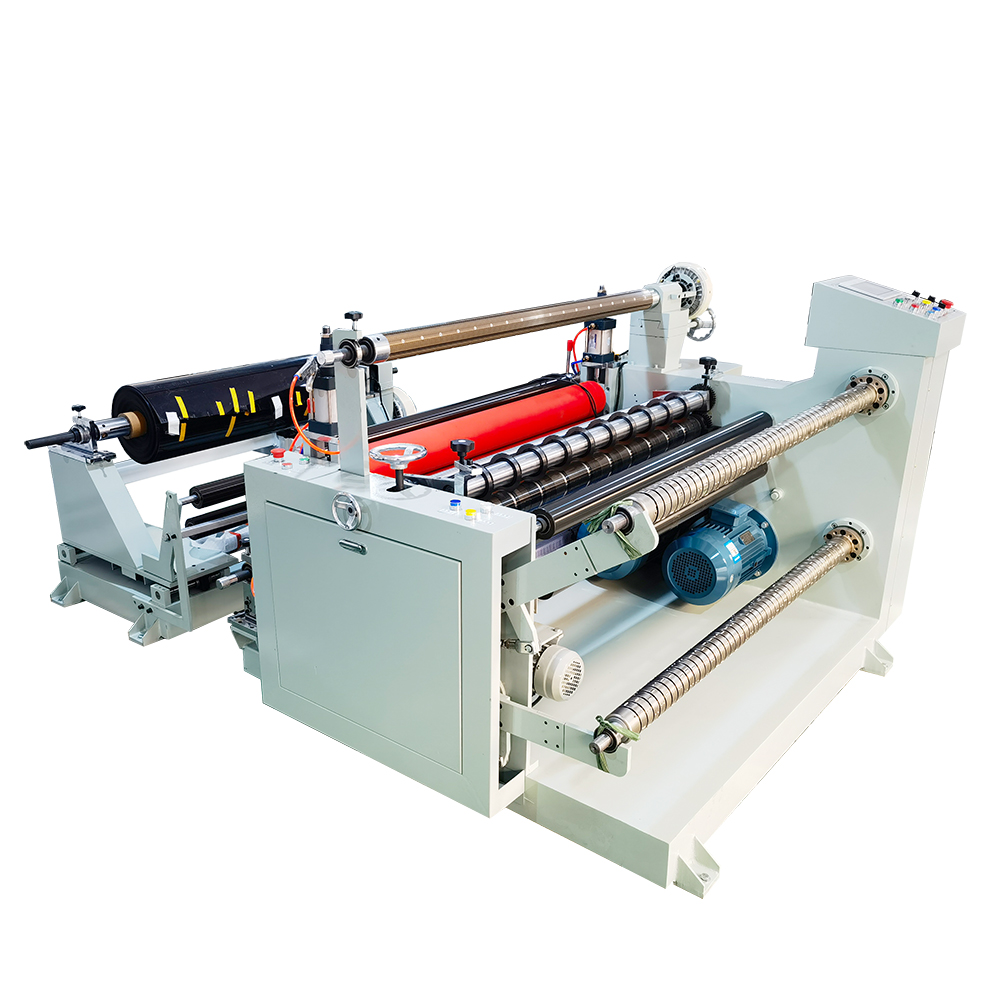

This machine is a high-precision, high-sensitivity slitting equipment. Rewinding and unwinding use pneumatic shafts, and the tension is controlled by a magnetic powder clutch. The unwinding and deviation correction adopts ultrasonic, which realizes automatic detection, automatic correction and automatic meter counting. Accurate slitting, fast speed, convenient operation and maintenance, etc.
Size: | |
---|---|
Quantity: | |
◎Laminating function
◎EPC (edge positioning control) device:Ultrasonic sensor
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unloading materials.
It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.
Model | HX-1300FQ | HX-1600FQ |
Max feeding width | 1300mm | 1600mm |
Power | 6kw | 6kw |
Speed | 80米/分钟 (m/min) | 80米/分钟 (m/min) |
Size | 2400x2000x1300mm | 2400x2300x1600mm |
Weight | 1200kg | 1500kg |
Max.unwinding diameter | 800mm | 800mm |
Max.rewinding diameter | 450mm | 450mm |
Precision | ±0.1mm | ±0.1mm |
Power | 380V 50Hz | 380V 50Hz |
