Automatic label slitter rewinder small slitting machine

Suitable for narrow paper slitting. It has the functions of automatic meter counting, automatic shutdown of set length and set quantity, and automatic photoelectric correction control for unwinding. The whole machine has the characteristics of compact structure, fast speed, high efficiency, accurate slitting, simple operation, stable operation, etc.
Size:
Availability:
Quantity:
  • HX-320FQ

  • Hexin

◎Counting function: length counting and piece counting

◎EPC system (edge positioning control): photo cell

◎Slitting unit

◎Waste discharge blower

◎Two air rewinding  inflatable shafts

◎Tension control by magnetic brake & magnetic clutch

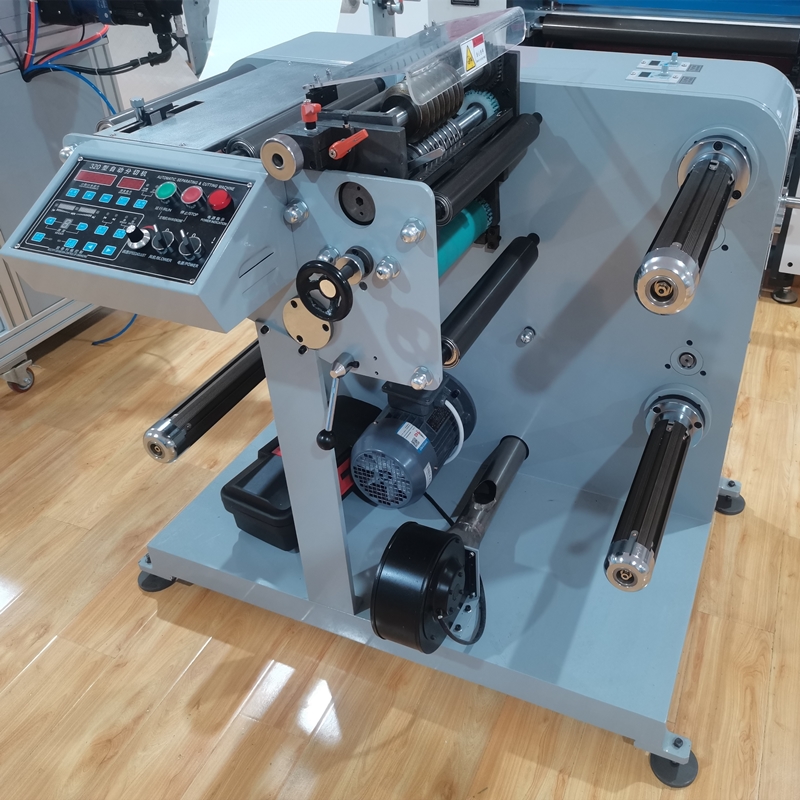

320FQ2320FQ1320FQ5320FQ3320FQ4

Technical Parameters





Model

HX-320FQ

slitting speed

70m/min(depending on the material)

Max Slitting Width

320mm

Max. Unwinding Diameter

500mm

Max. Winding Diameter

480mm

Min slitting width

8mm

Slitting tolerance

0.2mm

Slitting precision

0.1mm

Machine size(LxWxH)

1100x900x1300mm

Machine weight

400kgs









Machine Features





This is the finishing equipment. It is suitable for slitting roll/reel material such as paper, foil,

adhesive labels. It has functions of meter counter,

piece counter, length and quantity setting, automatically stopping, After reaching a preset number or

running meters .web guiding system and so on. This robust machine consisting of a solid steel frame,The structure is compact , fast, with high efficiency, easy and steady operation.





1.Machine frame made of coated steel

2.Electronics integrated in the machine frame

3.unwinding with pneumatic compressed shaft for 3" cores

4.rewinding with pneumatic compressed shaft for 3" cores

5.Web tension adjustable via magnetic powder clutch

6.Axial fan for suction of waste strip

7. The minimum slitting width is 8mm

8.unwinding is controlled by two photoelectric eyes



Standard configurations:



1.With 1pc 3’’ unwinding shaft, 2pcs 3’’ rewinding shafts( the size of shafts are optional).

2. With meter/number counter.

3. With two photoelectric eyes

4. With 8 sets of round  slitting knives

5.Machine has blower fan to blow away the trimmed edge





Application

slitting for label,paper,conductive fabric,foam,diffuser,reflector film, double-sided adhesive tape,nickel plate,PET,PC,PE insulation paper, copper /aluminum foil and all kinds

of adhesive tapes.











Our Services



1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

Machine Display







  Control panel



PTFE tape small roll slitting machine



Photoelectric eyes



PTFE tape small roll slitting machine



  Slitting knives



PTFE tape small roll slitting machine



 Motor and blower fan

 PTFE tape small roll slitting machine



  pressure roll (to prevent the material backward when machine stops)



PTFE tape small roll slitting machine



Rewinders



PTFE tape small roll slitting machine



  CE Certificaitons:



PTFE tape small roll slitting machine

Packaging

pack

FAQ:



1. Q: Are you a factory or trading company?



A: We are a factory and manufacturer





2. Q: Where is your factory located in ? How can I visit there?



A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed



address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu,



China. If you fly to Shanghai hongqiao airport or Pudong airport, we can pick you up by carfrom there. We welcome all our clients, home and abroad, to visit us.





3. Q: what are your main products?



A: Our main products are belt cutting machines, slitting machines, sheeting machines,



laminating machines and rotary die cutting machines.





4. Q: Which industries can use your machines ?



A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.





5. Q: How to control the quality in your factory ?



A: Quality is priority.  We control the quality of our products strictly, from the incoming



materials to the finished products. Our factory has obtained CE & ISO Certification





6. Q:If there are no machines available from your list, could  we customize  non-standard machines from you ?



A: Yes, we have our own professional design engineers, and can customize products

according to your requirement.



Please Contact Me for Most Competitive Price!


Slitting for label, conductive fabric, foam, diffuser,reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.


Model

HX-320FQ

Slitting speed

70m/min

Min.slitting width

20mm

Max. unwinding dia.

500mm

Max. rewinding dia.

480mm

Slitting precison

±0.10mm

Main power

0.75kw
