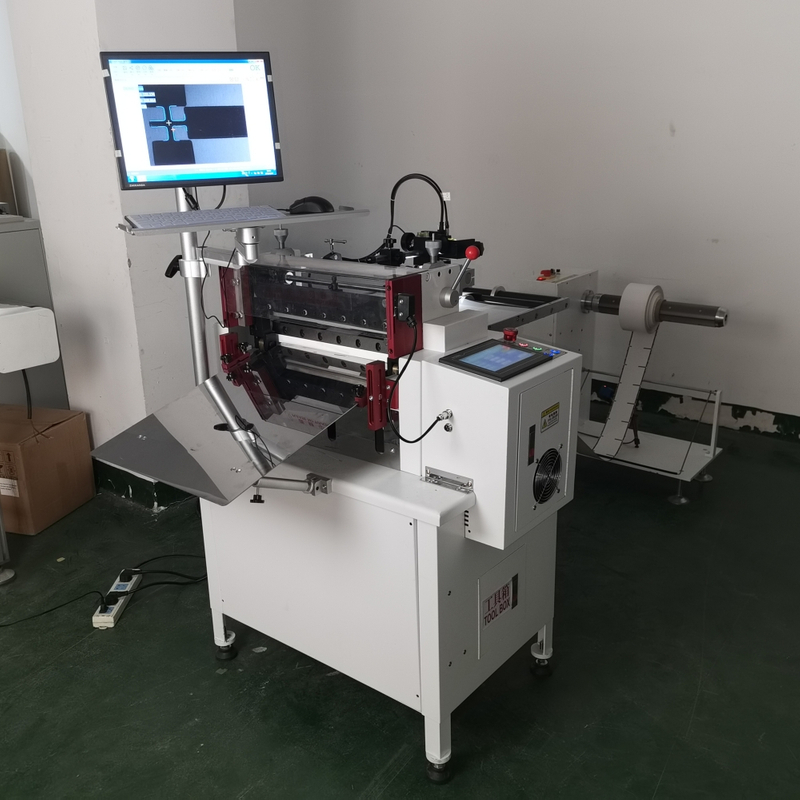

Precision vision system film cutting machine

Using man-machine interface + PLC control system and pneumatic ejection device, it can do special cutting with multiple cuts, half cuts and one cut. The cutting length can be set in 5 different sizes, and different cutting numbers and cycles can be set to increase Cutting efficiency, high precision, low loss and simple operation.
Size:
Availability:
Quantity:
  • HX-360B

  • Hexin

详情页-昆山鹤鑫精密通用-1

◎Taiwan Brand Servo motor & Japan brand PLC applied

◎Touch screen, easy operation

◎Japan brand Photo cell tracing device

◎Absorption device

◎Cutting length and cutting speed are adjustable.

◎Low accumulative tolerance

切片机+视觉系统3切片机+视觉系统4切片机+视觉系统2

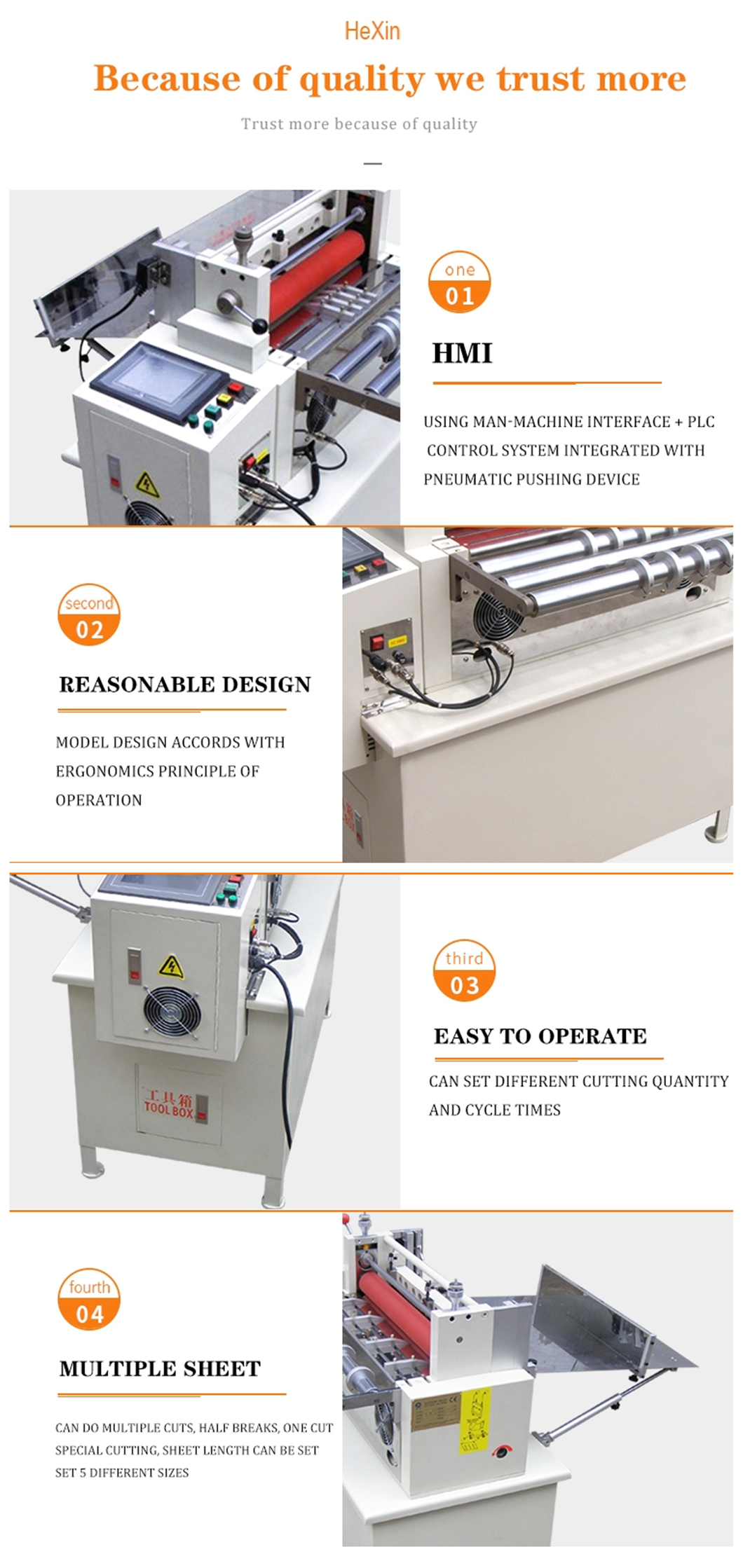

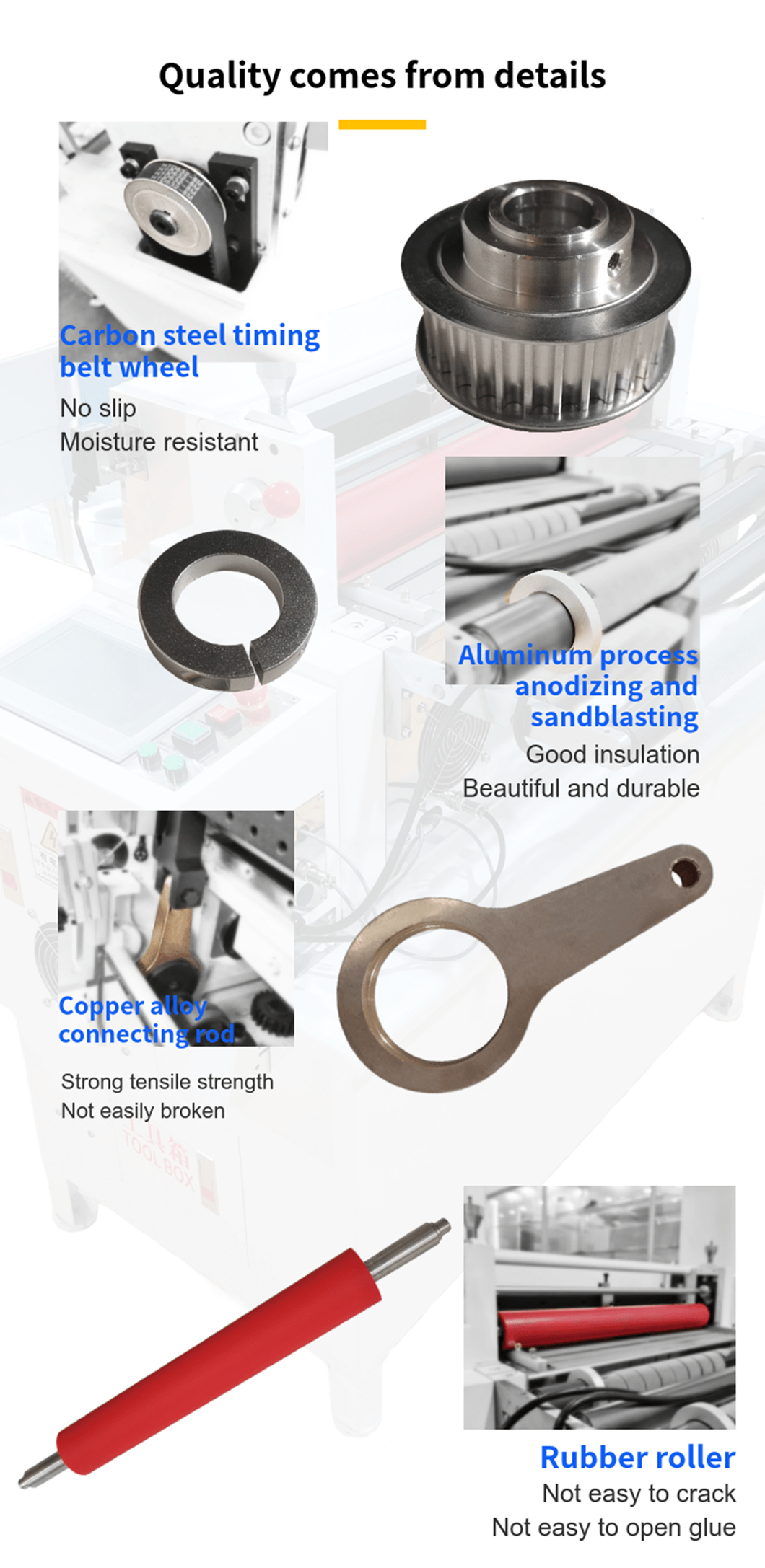

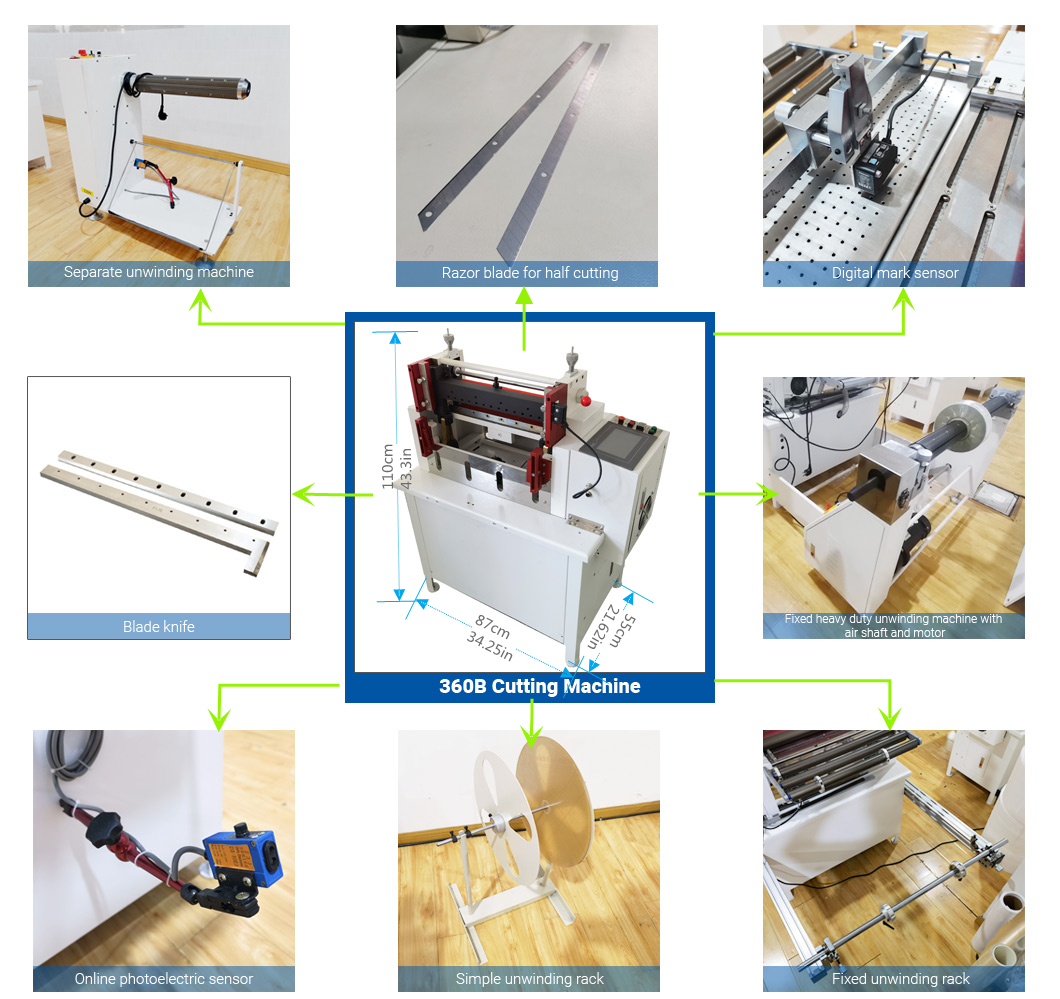

详情页360B500B-7详情页360B500B-5详情页360B500B-4详情页360B500B-6


specifications:




Model

HX-360B

HX-500B

Voltage

380V

380V

Total Power

1.3KW

1.3KW

N.W.

220kg

240kg

GW.

240kg

260kg

Cutting Width

1-360mm

1-500mm

Cutting Length

0.1-9999.9mm

0.1-9999.9mm

Packing Size

780x920x1300mm

980x1450x1070mm



Featuress :

Taiwan Brand Servo motor & Japan brand PLC applied

Multi-cutting models can be set according to your needs

5 different lengths can be set in a cutting circle, cycling times can also be set

Cutting length and cutting speed adjustable.

Optional kiss-cut (several times kiss-cut)+full-cut (one time full-cut) available

Application:

Sizing cutting for conductive fabric, foam, reflector film, double-sided adhesive tape,

nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.



Our company
详情页-昆山鹤鑫精密通用-9详情页-昆山鹤鑫精密通用-10About Us

We are a team of industry professionals with strong backgrounds in cutting, die cutting, slitting, laminating

and rolling. Other related machines in our fields can be customized based on your specific requirements.

Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near

Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.

Established in 2007, we have been dedicated on converting machines which are used before and after

printing for over 10 years.

 Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers

reliable products, perfect service.Our products are widely applied in laminating, slitting and die cutting

for shield materials, sticky materials, insulating materials, conductive materials, electronic materials.

Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.

coustom machine

600B

360

详情页-昆山鹤鑫精密通用-11详情页-昆山鹤鑫精密通用-12




Sizing cutting for printed materials, conductive fabric, foam, reflector film, woven label, double-sided adhesive tape,

nickel plate, PET,PC,PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.

Model

HX-360D

HX-500D

Voltage

380V

380V

Total Power

1.3KW

1.3KW

N.W.

260kg

280kg

GW.

280kg

300kg

Cutting Width

1-360mm

1-500mm

Cutting Length

0.1-9999.9mm

0.1-9999.9mm

Measurement

780x920x1070mm

980x1450x1300mm
