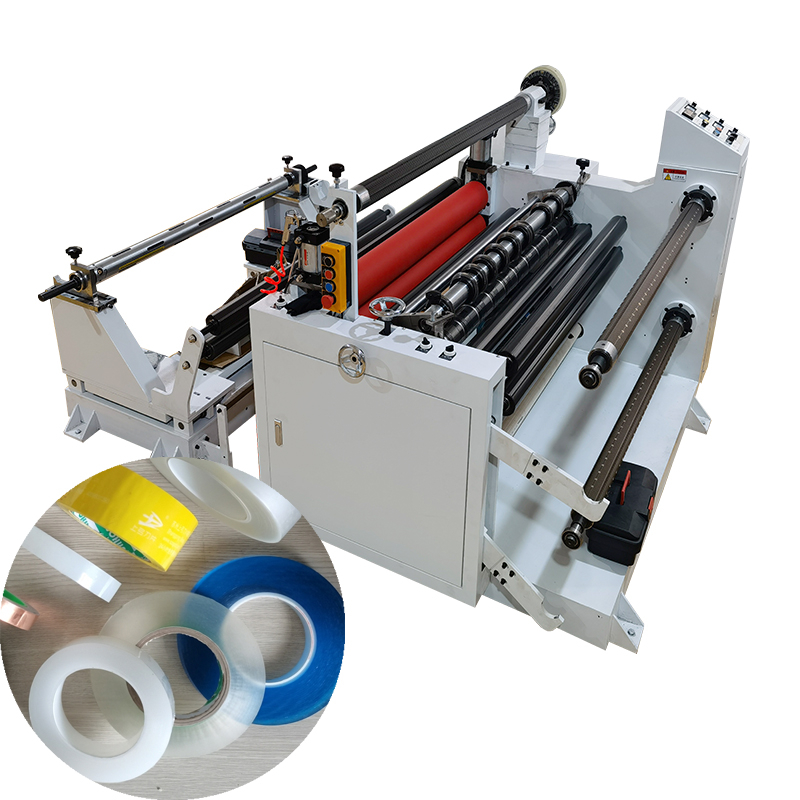

HX-1300FQ
Hexin
◎Laminating function
◎EPC (edge positioning control) device：Ultrasonic sensor
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unloading materials.
Model | HX-1300FQ | HX-1600FQ |
Max feeding Width | 1300mm | 1600mm |
Main Engineer Power | 4kw | 6kw |
Speed | 80m/min | 80m/min |
Size | 2400*2000*1300mm | 2400*2300*1600mm |
Weight | 1200kg | 1500kg |
Max. Unwinding Diameter | 600mm | 800mm |
Max. rewinding Diameter | 450mm | 450mm |
Precision | ±0.1mm | ±0.1mm |
Power | 380V 3Phase | 380V 3Phase |
Mini. slitting width | 8mm | 8mm |
Features
* Laminating function
* EPC (edge positioning control) device:Ultrasonic sensor
* Waste discharge function
* Magnetic brake and clutch
* Length counting function, automatically stop after it reaches the length you set.
* 2 rewinding inflatable shafts, easy for unloading materials.
* The minimum slitting width: 8mm
* Material thickness range: 0.05-3mm
Features for aluminum foil slitting rewinding machine :
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions:
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for aluminum foil slitting rewinding machine :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
CE Certification
Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured .
Letter of Patent for aluminum foil slitting rewinding machine
Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first .
The samples which use our machines to produce
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory and manufacturer
2. Q: Where is your factory located in ? How can I visit there?
A: Our factory is located in Kunshan which is very near from Shanghai, and
our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport
or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.
3. Q: what are your main products?
A: Our main products are belt cutting machines, slitting machines, sheeting
machines, laminating machines and rotary die cutting machines.
4.Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit,
laminate, rotary die cut raw materials can use our machines.
5.Q: How to control the quality in your factory ?
A: Quality is priority. We control the quality of our products strictly, from the
incoming materials to the finished products. Our factory has obtained
CE & ISO Certification
6. Q:If there are no machines available from your list, could we customize
non-standard machines from you ?
A: Yes, we have our own professional design engineers, and can customize
products according to your requirement.
