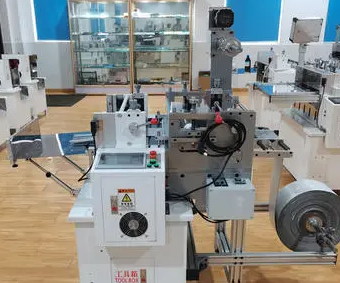

Full set Hexin PE Insulation Paper Cutting Roll Slitting Machine

Application:
The machine is applicable for 3M tapes,Mylar Kapton tapes,EVA,PE,protective films,BOPP tapes,masking tapes,kraft paper tapes,cloth-based materials and so on.
Size:
Availability:
Quantity:
  • HX-1300Q
  • Hexin

◎Centralized control panel.

◎Main functions on panel: cutting blade speed,cutting width display,cutting quantity display.

◎Servo motor controls cutting widths, ball screw ensures precise cutting sizes.

磨刀机9

Grinding machine

77

round blade knife

切卷机1

切卷机2

切卷机4

切卷机5

切卷机3

Model HX-1300Q HX-1600Q
Cutting Length 0.1~9999.9mm 0.1~9999.9mm
Cutting Width 1~1300mm 1~1600mm
Power 8HP 8HP
Voltage 220V/380V 220V/380V
N.W./ GW. 1500/1600kg 1600/1700kg
Measurement 2.9m*1.3m*1.5m 3.2m*1.3m*1.5m
1. The max width: 1300mm/1600mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional
10.Single machines can do separate small processing plants, and can also make a supporting equipment for large production lines.
Characteristics:

1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 10 years

Application:

Sizing cutting for conductive fabric, foam, diffuser, reflector film, double-sided adhesive tape, nickel plate, PET, PC, PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.

After-service:

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory.
4.Our company in France, India, Indonesia, Algeria, Australia, with after-sales service station.

详情页-昆山鹤鑫精密914-2-2副本


The machine is applicable for 3M tapes,Mylar Kapton tapes,EVA,PE,protective films,BOPP tapes,masking tapes,kraft paper tapes,cloth-based materials and so on.


Model

HX-1300Q-1

HX-1600Q-1

Max. Web width

1300mm

1600mm

Min.slitting width

2mm

2mm

Slitting precision

±0.05mm

±0.05mm

Max. Cutting dia.

400mm

400mm

Cutting blade dia.

250-450mm

250-450mm
