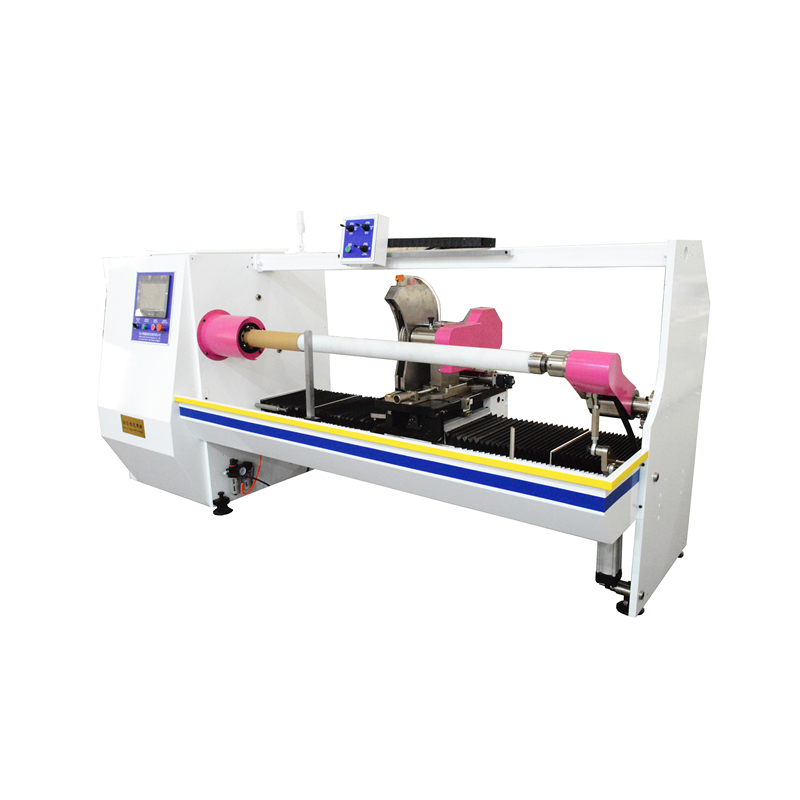

HX-1350QA
Hexin
◎Centralized control panel.
◎Main functions on panel: cutting blade speed,cutting width display,cutting quantity display.
◎Servo motor controls cutting widths, ball screw ensures precise cutting sizes.
Purpose
Suitable for slitting of materials such as 3M, Mylar, EVA, protective film, BOPP, PET, masking tape, foam tape, double-sided tape, kraft paper tape, cloth tape, etc.
Width of cut material surface | 1300mm/1600mm | Cutting width | 1mm~1300mm/1600mm |
Maximum diameter of cut | 380mm | Inner diameter of the cutting paper core | 76mm |
Operating voltage | 380V 50HZ | air pressure
| 0.4-0.7MPa
|
Overall dimensions | 3000*1500*1500mm | 1600Q | 3400*1500*1500mm |
