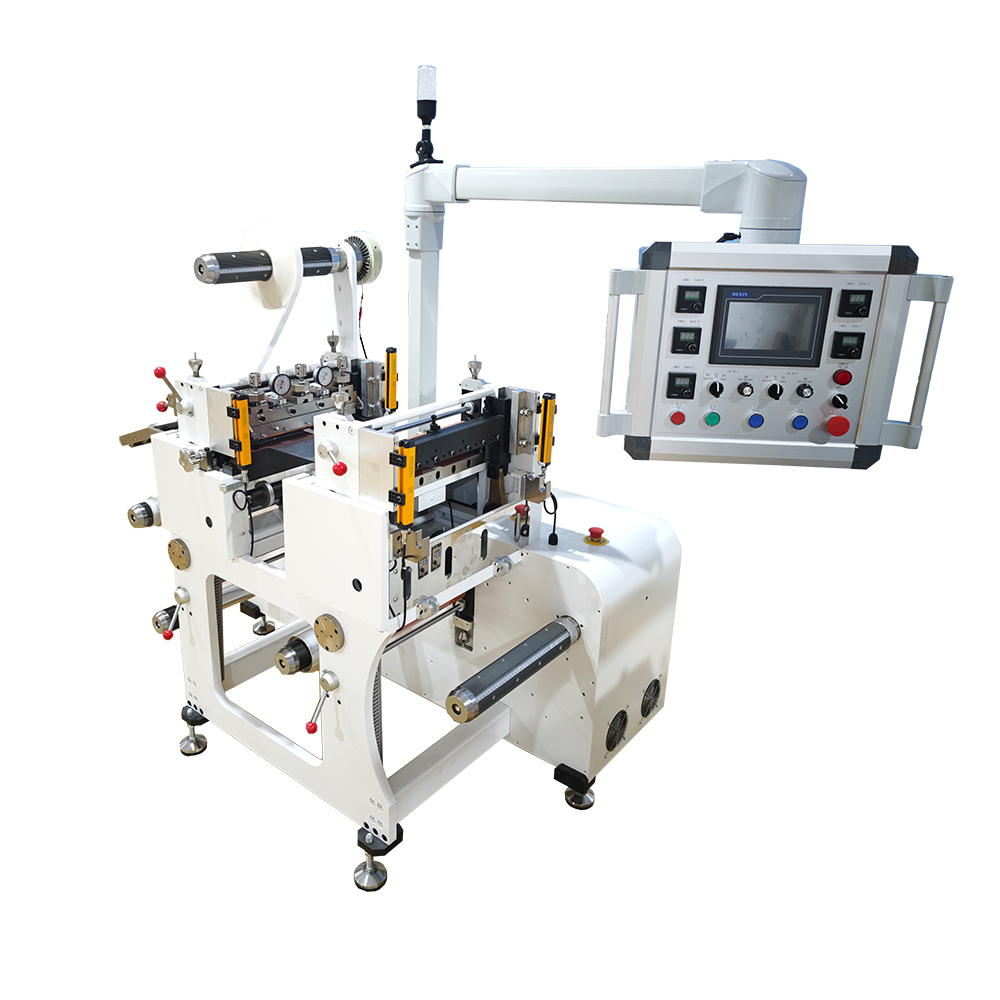

Saving Labor Time and Reducing Costs 360mm Wide Jump Cutting Machine

This machine employs programmable controller + man-machine touch screen + two servo controller to pull material, good synchronization, easy operation. This machine can do intermittent cutting and other six cutting methods: (1) Several intermittent kiss-cutting, +one through-cutting, (2) Several kiss-cutting + one through-cutting (3)kiss-cutting + rewinding (4)intermittent kiss-cutting +rewinding function , (5) Through-cutting (6) Intermittent through-cutting
Size:
Availability:
Quantity:
  • HX-360JXS

  • Hexin

This machine employs programmable controller + man-machine touch screen + two servo controller to pull material, good synchronization, easy operation. This machine can do intermittent cutting and other six cutting methods: (1) Several intermittent kiss-cutting, +one through-cutting, (2) Several kiss-cutting + one through-cutting (3)kiss-cutting + rewinding (4)intermittent kiss-cutting +rewinding function , (5) Through-cutting  (6) Intermittent through-cutting

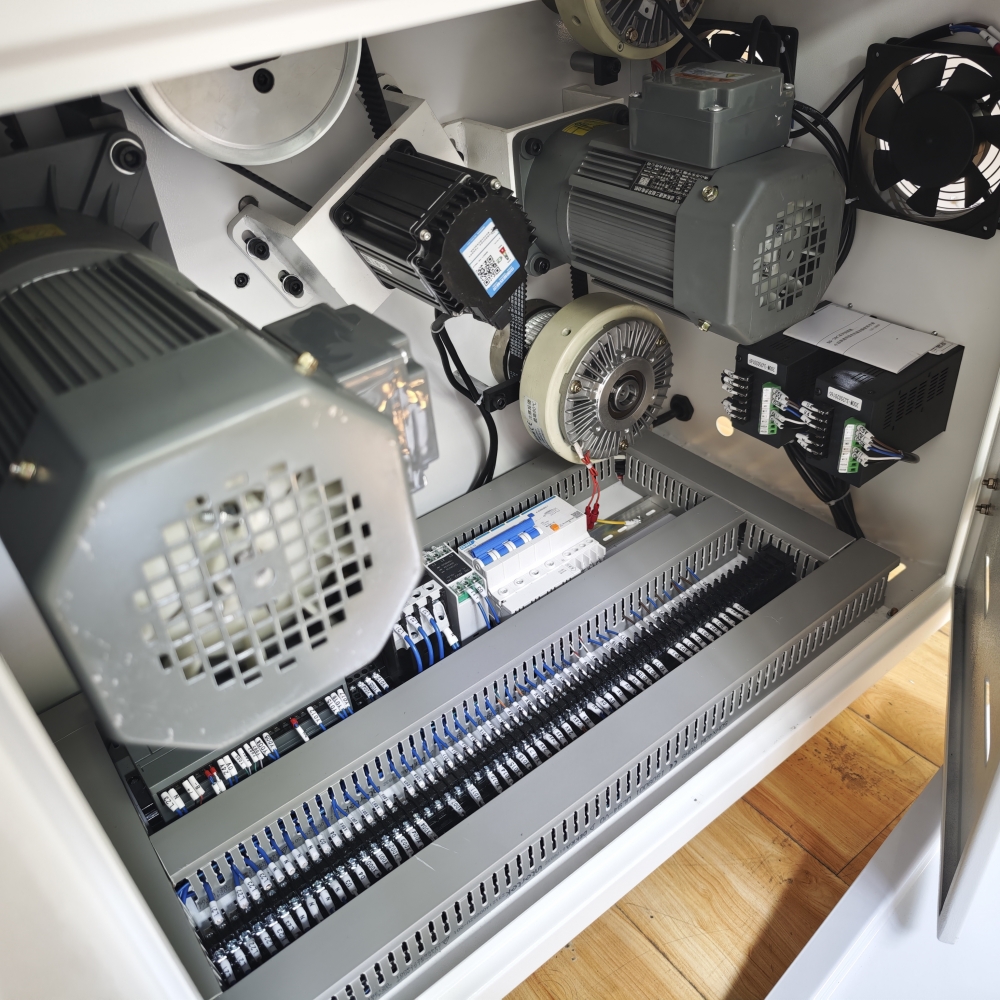

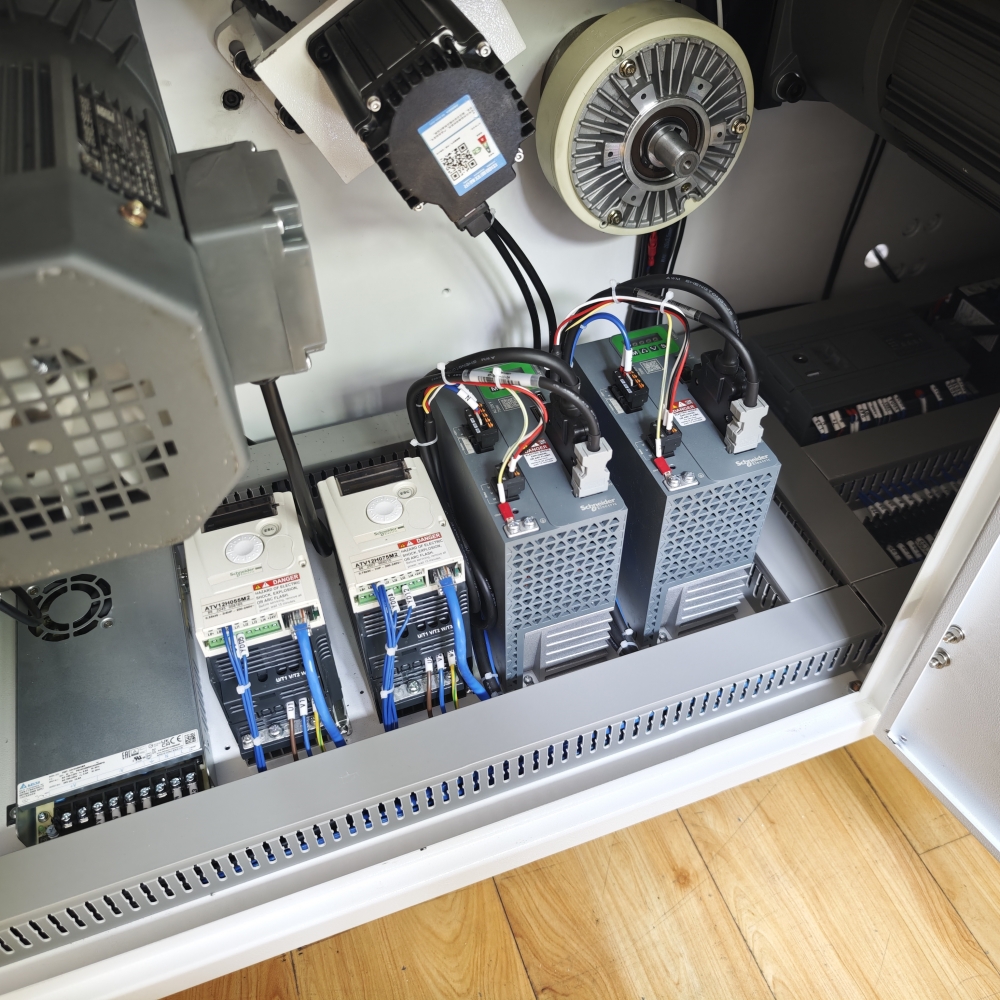

◎Taiwan Brand Servo motor & Japan brand PLC applied

◎Touch screen with the ability to save parameters

◎Cutting length and cutting speed adjustable

◎Both Kiss-cut and full-cut are available, 6 different cutting models available for your choice.

◎Save raw materials for no waste discharging

◎Unwinding roll material diameter can be customized

Model number

HX-360JXS

voltage

380V

power

5P

Net weight


620kg

Gross weight


650kg

Cut length


0.1-9999.9mm

Cutting width


1-360mm

Cutting speed


220/min

Cutting accuracy


±0.05mm

Packing size

2000*1000*1750mm




93aa1c22b69ecff73b4456f268db787_副本40b4fda9cbfc1c0e43ea6a00b26dad6_副本5efbcc2dc7de73aaa1b0d350c4e32a5_副本37e2e00a8a94e034ff5a4cb57fd70b0_副本53b1d05ef8ce09a9acb8e0450cdf0b5_副本

跳切样品3mVHB胶带1

详情页-昆山鹤鑫精密914-2-2副本

Our machine is suitable for conductive fabric, foam, diffusion film, reflective film, double-sided tape, PET, PC, PE insulation paper, copper / aluminum foil gap-type crop, so that the finished product retention gap, no waste generated. Significant cost savings and labor, saving time and effort, which is a national initiative.


Model

HX-500JXS

HX-600JXS

Voltage

380V

380V

Total Power

3.5KW

3.5KW

N.W.

580kg

620kg

GW.

600kg

650kg

Cutting Length

0.1-9999.9mm

0.1-9999.9mm

Cutting Width

1-500mm

1-600mm

Measurement

1850*1200*1750mm

2000*1400*1750mm
