HX-360jxs
Hexin
|

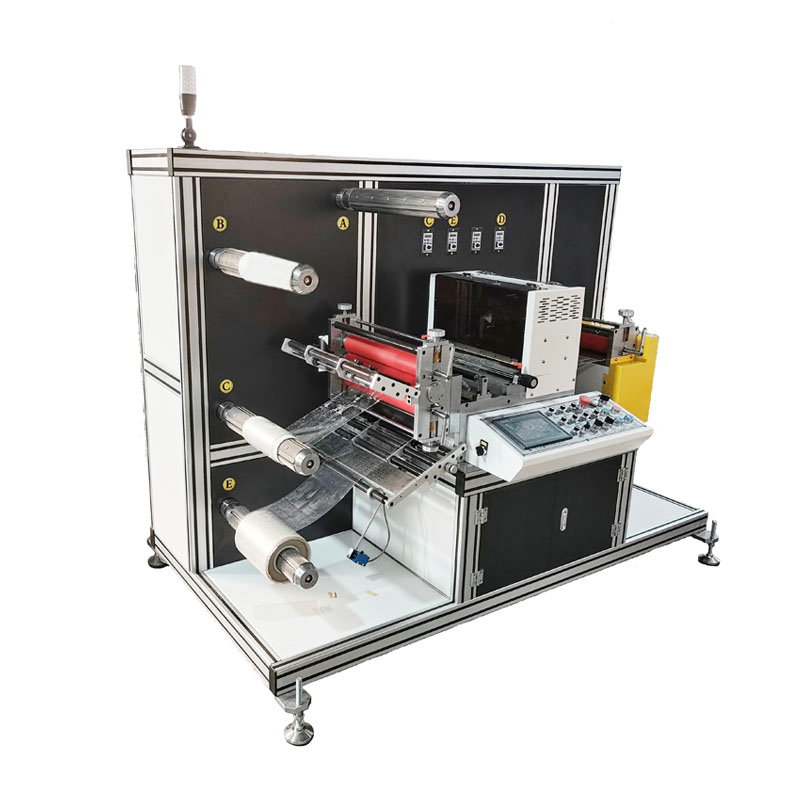

This machine employs programmable controller + man-machine touch screen + two servo controller to pull materials, good synchronization, easy operation. This machine can do intermittent cutting and other six cutting methods: (1) Several intermittent kiss-cutting (half cutting) +one through-cutting (full cutting) (2) Several kiss-cutting + one through-cutting (3)kiss-cutting + rewinding (4) intermittent kiss-cutting +rewinding function , (5) Through-cutting (6) Intermittent through-cutting
◎Taiwan Brand Servo motor & Japan brand PLC applied
◎Touch screen with the ability to save parameters
◎Cutting length and cutting speed adjustable
◎Both Kiss-cut and full-cut are available, 6 different cutting models available for your choice.
◎Save raw materials for no waste discharging
◎Unwinding roll material diameter can be customized
Technical Parameters
Model | HX-360JXS |
Voltage | 220V |
Power | 3kw |
N.W. | 800KG |
Cutting Length | 0.1-9999.9mm |
Cutting Width | 1-360mm |
Cutting Speed | 200 cuts/min |
Cutting Precision | ±0.05mm |
Machine size | 2000*1260*1600mm |
1. PLC+ touch screen+two servo controllers;
2. Six different working ways: several times of intermittent kiss-cut + one time of complete cut; several times of kiss-cut + one time of full cut; all in kiss-cut +rewinding; all in intermittent kiss-cut+rewinding; all in full cut; all in intermittently full cut;
3. Laminating and cutting can be finished at one time;
4. This machine is ergonomically designed.
5. This is a multifunctional machine that can cover your various needs;
6. High accuracy, fast reaction, and timely synchronization;
7. Significantly saving time and cost;
8. The operation is easy.
9. The waste rate is low.
10. Manufacturing experience: 10 years;
11. Export experience: 5 years.
This machine is suitable for conductive fabric, foam, diffusing sheet, reflecting film, double-sided tape, PET, PC, PE insulation paper, copper/aluminum foil, etc.
samples
our services 1. The warranty period is 12 months; Our USP (Unique selling point) Our factory is specialized in manufacturing and exporting cutting machines, slitting machines, laminating machines, and die cutting machines with high quality and competitive price. Free training and testing will be available before shipping.
1) Having factory and professional engineers;
2) Reasonable price;
3) Strict and perfect quality testing and control procedure;
4) Years of export experience;
5) Customized color and logo are acceptable;
6) Best service and punctual delivery;
FAQ
1. Q: Are you a manufacturer or a trading company? A: We are a manufacturer.
2. Q: Where is your factory located in? How can I visit there?
3. Q: What are your main products? A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.
4. Q: Which industries are your machines widely used in? A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.
5. Q: How does your factory do regarding quality control? A: Quality is a priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification. sample |
|
