Oil Heating Laminating Machine

Size:
Availability:
Quantity:
  • HX-650TH
  • Hexin

◎High and new technology applied, no circulating oil is used during heating process, oil-saving and environment-friendly.

◎Constant temperature control system can keep the laminating rollers temperature constant to achieve the   best laminating effect .

◎High quality frequency control motor makes the laminating speedy stead and balanced..

◎Suitable for laminating:  roll material + roll material / roll material +sheet material

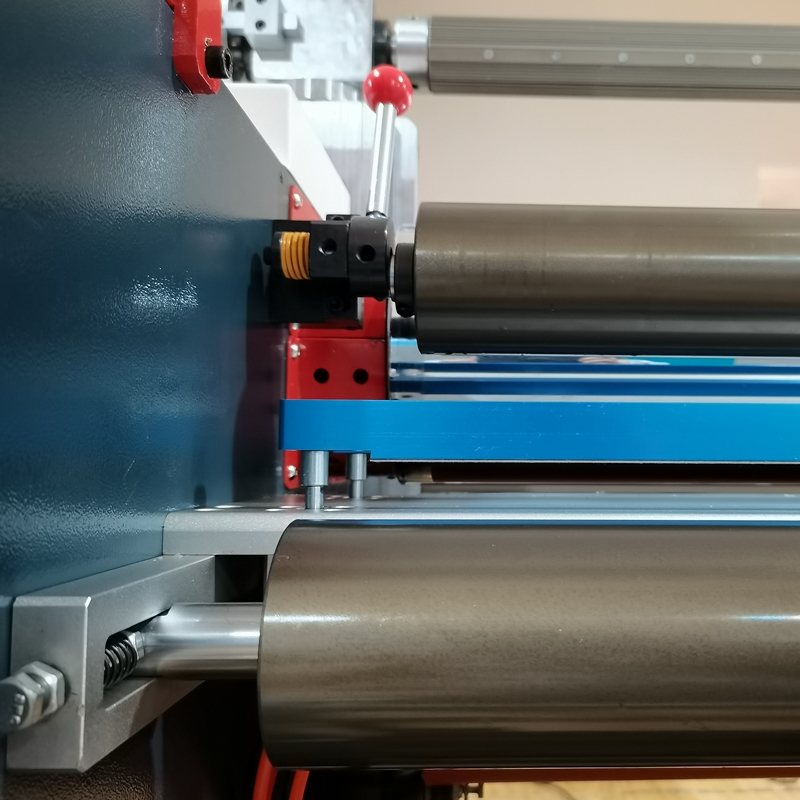

◎This machine is equipped with mirror heated roller and imported high temperature resistance silicone roller. The space between rollers is controlled by pneumatic cylinder which is easy for adjustment. The large diameter of the rollers increases the contacting area of the materials, so the laminating effect is flat and smooth.

650TH1650TH3650TH2650TH8650TH7

Model

HX-650TH

HX-1100TH

Laminating speed

0-30m/min

0-30m/min

Laminating precision

±1mm

±1mm

Max. Unwinding diameter

450mm

450mm

Max. Rewinding diameter

450mm

450mm

Voltage

380V

380V

Power

3KW

4KW

Measurement

1600x1400x1400mm

1900x1460x1580mm

GW

350kg

550kg
