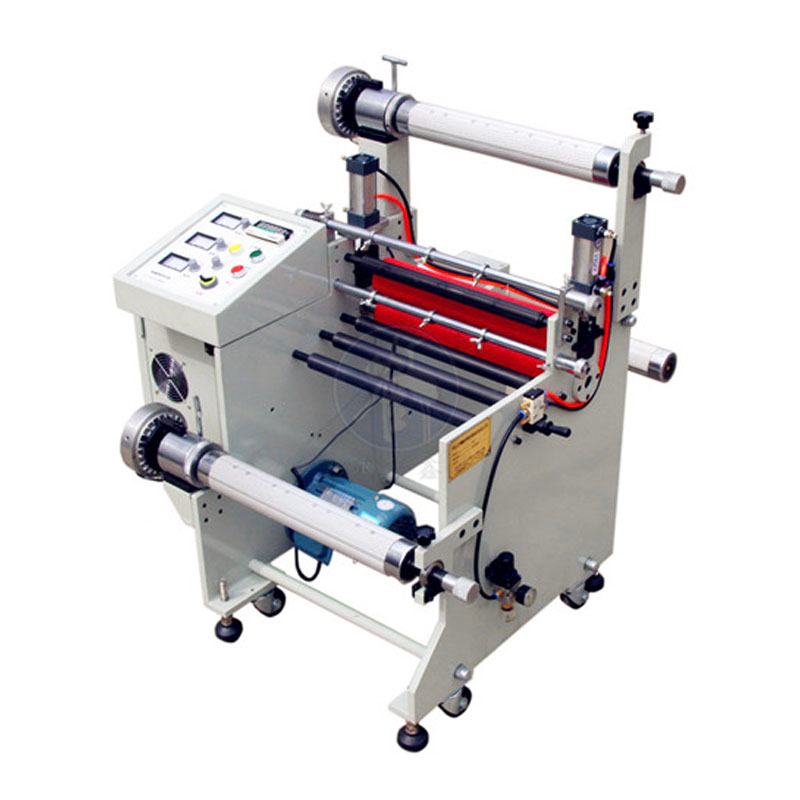

Factory Electric Cellophane Paper plastic film lamination machine

Used for bonding between materials with primer + materials without primer or between two film products with electrostatic adsorption function
Size:
Availability:
Quantity:
  • HX-420T

  • Hexin

◎Auto length counting function, it will stop running after it reaches the set length.

◎Unwinding tension is controlled by magnetic brake, rewinding tension is controlled by magnetic clutch.

◎The laminating rollers are controlled by air cylinder.

◎High precision, fast speed and easy operation.

420t1420t4HX-420T 精密贴合机1420t3420t

Main Technical Parameter (cellophane paper laminating machine):

Model

HX-420T

Max Web Width

420mm

Max.Feeding Diameter

500mm

Sticking Speed

60m / min

Sticking Precision

±0.3

Main Motor Power

0.75kw

Total Power

1.5kw



Features (cellophane paper laminatoing machine):
1. Max feeding width: 420mm
2. Speed: 60m/min
3. Material thickness: 0.05-3mm
4. Tolerence: +/-0.2mm
5. Precision: 0.3mm
6. Under CE and ISO
7. OEM or ODM can be customized
8. Manufacturing experience: 30 years
9. Export experience: 20 years

Functions (cellophane paper laminating machine):
1. This cellophane paper laminating machine is applicable to stick the narrow scope paper
2. It automatically count meter, set length, stop and alarm, unwind
3. Tension is controlled by magnetic clutch,
4. High precision, high speed, easy to operate

Application (cellophane paper laminating machine):

Laminating and sticking for materials with base glue and other materials.

After-service (cellophane paper laminating machine):
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines


One kind of glue-based material + one kind of non-glue based material.

Two kinds of film materials can be laminated by electrostatic adsorption

Model

HX-420T

HX-650T

Max.web with

420mm

650mm

Max.unwinding diameter

500mm

600mm

Laminating speed

60m/min

60m/min

Laminating precision

±0.3mm

±0.3mm

Motor power

0.75kw

1kw

Power

1.5kw

2kw
