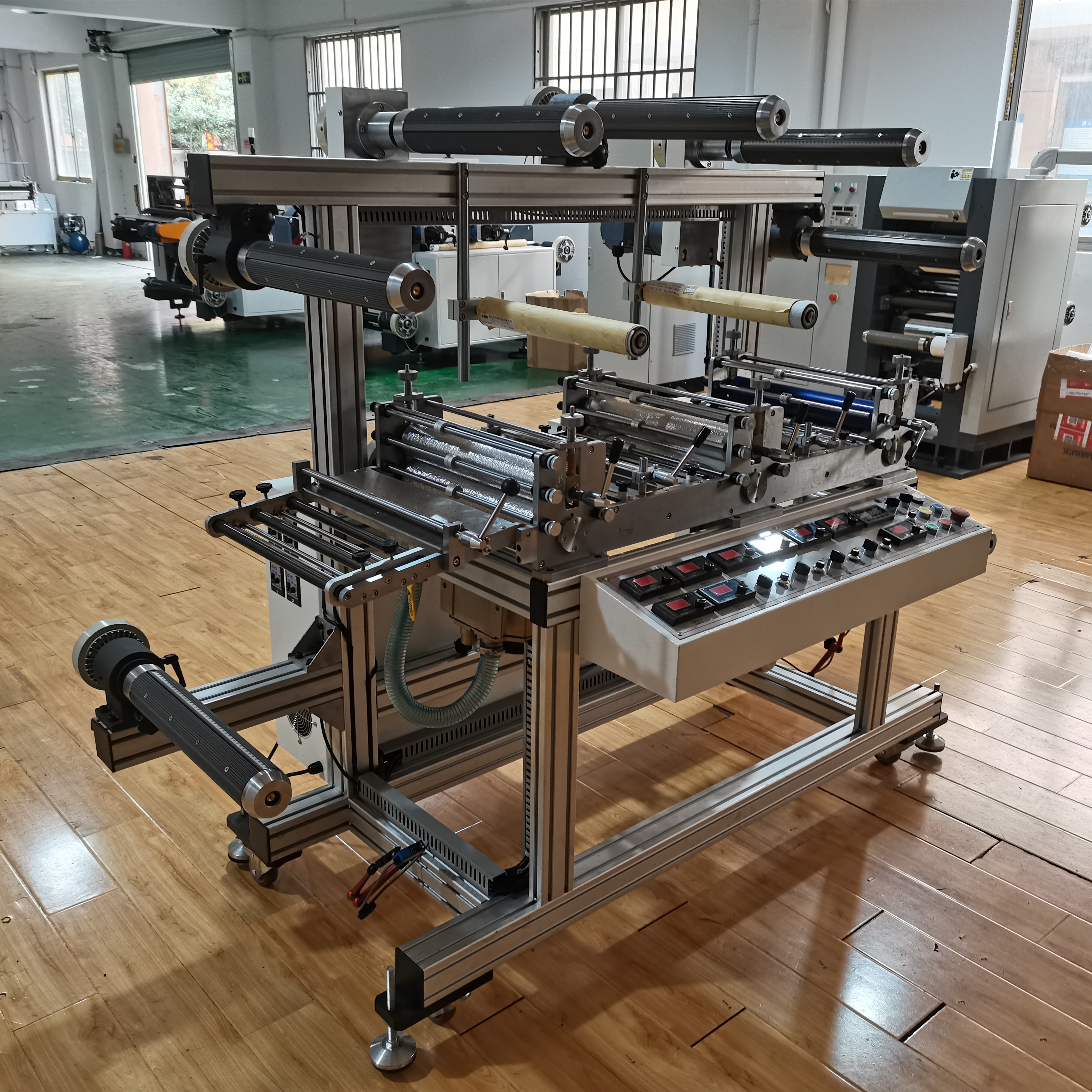

All kinds of plastic film Multi-layer Laminating Machine

The multi-layer laminating rubber roller can be used for laminating and discharging multiple and multilayer materials. The laminating tension of the material is controlled by the magnetic powder tension controller. The waste discharging and rewinding are controlled by the servo, and the touch screen is adjusted, which can be intuitive , Accurately adjust its tension and speed, and have the power-off retention function, thereby reducing the tedious work of repeated adjustments and ensuring the flatness of the laminating material. Each group of laminating rubber rollers can independently adjust the pressure of the upper and lower rubber rollers , Clearance, simple and convenient operation.
Size:
Availability:
Quantity:
  • HX-320DTB

  • Hexin


Standard function:

Feeding—laminating—discharging—laminating—discharging—laminating—discharging—laminating—rewinding

The multi-layer laminating rubber roller can be used for laminating and discharging multiple and multilayer materials. The laminating tension of the material is controlled by the magnetic powder tension controller. The waste discharging and rewinding are controlled by the servo, and the touch screen is adjusted, which can be intuitive , Accurately adjust its tension and speed, and have the power-off retention function, thereby reducing the tedious work of repeated adjustments and ensuring the flatness of the laminating material. Each group of laminating rubber rollers can independently adjust the pressure of the upper and lower rubber rollers , Clearance, simple and convenient operation.

320DTB4320DTB3320DTB1320DTB2

Main technical parameters:

型号/Model

HX-320DTB

HX-420DTB

放料轴/Unwinding shaft

4

4

收料轴/Rewinding shaft

4

4

最大贴合宽度/Max. laminating web width

320mm

420mm

贴合速度/Laminating speed

0-1500m/h

0-1500m/h

贴合精度/Laminating precision

±0.1mm

±0.1mm

收卷直径/Rewinding diameter

600mm

600mm

张力控制器/Tension controller

4

4

收卷张力伺服/Rewinding tension control servomotor

4

4

收卷张力伺服控制触摸屏/Rewinding tension control touchsrceen

1

1

电源/Voltage

220V

220V

机器重量/Machine weight

400kg

430kg

机器外型/Machine size

1600x1800x800mm

2100x1250x1600mm

主机功率/Power

3.5KW

3.5KW



There are two models of this vinyl laminating machine :

Model

HX-320DT(7 shafts)

HX-420DT(7 shafts)

Unwinding Shaft (sets)

4

4

Rewinding Shaft (sets)

3

3

Max Laminating Width(mm)

320mm

420mm

Laminating Speed(times/h)

0-1500m/h

0-1500m/h

Laminating Precision(mm)

±0.1mm

±0.1mm

Winding Diameter(mm)

600mm

600mm

Tension Controller (sets)

7

7

Power Supply(v)

220v

220v

Machine weight (kg)

400kg

430kg

Machine Dimensions(mm)

1600x1800x800mm

2100x1250x1600mm

Machine Power

1200w

1200w





Machine Features



1. Max material width: 320mm;
2. Laminating thickness: Up to 5mm;
3. Laminating speed: 0-1500/min;
4. Tolerance: 0.05mm;
5. Precision: 0.1mm;
6. It adopts seven tension controller of magnetic powder to achieve smooth lamination;

7. Each pair rubber rollers can be adjusted separately to get right pressure and space;

8. Standard working procedureFeeding---Laminating---Waste Discharging---Laminating---Waste Discharging---Rewinding;

9. Humanized design with castors, being able to moving;

10. We have different models of 5 shafts, 7 shafts, and 8 shafts to meet various demands;

11. It is easy and convenient to operate;

12. Holding CE and ISO certifications;





Application



For materials that need to laminate into multilayers.





Our Services



1. A warranty period of 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering;



◎The machine can perform laminating, waste discharging for multiple strips and multi-layer material.

◎The laminating tensions of material is totally controlled by magnetic powder tension controller.

◎The rewinding and discharging shafts are controlled by serve motor .The tension and speed could be adjusted directly by touch screen .

◎The setting could be recovered in case of power off . It reduces lot's of unnecessary repeat operation .

◎Every laminating shaft can independently adjust the pressure and gap of upper and lower shaft . It guarantees the flatness of film laminating material.


Model

HX-320DTB

HX-420DTB

Unwinding shaft

4

4

Rewinding shaft

4

4

Max. laminating web width

320mm

420mm

Laminating speed

0-1500m/h

0-1500m/h

Laminating precision

±0.1mm

±0.1mm

Rewinding diameter

600mm

600mm

Tension controller

4

4

Rewinding tension control servomotor

4

4

Rewinding tension control touchsrceen

1

1

Voltage

220V

220V

Machine weight

400kg

430kg

Machine size

1600x1800x800mm

2100x1250x1600mm

Power

3.5KW

3.5KW
