Industrial Electric Knife Sharpener Professional Round Blade Grinding Tungsten Carbide Circular Blade Sharpener Grinding Machine Other Grinding Machines

Industrial Electric Knife Sharpener Professional Round Blade Grinding Tungsten Carbide Circular Blade Sharpener Grinding Machine
Round knife sharpener Detailed description: *The scope of use of this machine 1. Inner diameter of round knife: standard adjustable range Φ25.4mm, customized size is available. 2. Grinding diameter Φ50mm---Φ500mm 3. Grinding angle 0°-45° 4. Use voltage 220V 50HZ Round knife sharpener Host equipment 1. Spindle motor 1/4HP AC stepless variable speed motor 2. Large knife edge grinding 3/4HP AC 2880RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ125*Φ19*48t*3 3. Small knife edge grinding 1/8HP AC 2950RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ100*Φ12*29t*3 4. Cooling system 1/8HP AC 2850RPM spray cooling
Size:
Availability:
Quantity:
  • SG-500

  • Hexin


                                                 |

 Product Description

Industrial Electric Knife Sharpener Professional Round Blade Grinding Tungsten Carbide Circular Blade Sharpener Grinding Machine
Round knife sharpener Detailed description: *The scope of use of this machine 1. Inner diameter of round knife: standard adjustable range Φ25.4mm, customized size is available. 2. Grinding diameter Φ50mm---Φ500mm 3. Grinding angle 0°-45° 4. Use voltage 220V 50HZ Round knife sharpener Host equipment 1. Spindle motor 1/4HP AC stepless variable speed motor 2. Large knife edge grinding 3/4HP AC 2880RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ125*Φ19*48t*3 3. Small knife edge grinding 1/8HP AC 2950RPM Angle adjustment range +/-15 degrees-Waterproof motor grinding wheel CBNΦ100*Φ12*29t*3 4. Cooling system 1/8HP AC 2850RPM spray cooling

 磨刀机_副本大小磨刀机磨刀机21磨刀机20

Data Sheet

Grinding machine configuration list

Application

Suitable for varity of round knife grinding

Inner diameter

Available range 25.4mm

 Grinding diameter

50mm to 500mm

 Grinding angle

0 - 30°

 Power

220V 50HZ  1PHASE

Configuration


Main axle motor

Main axle 40w speed adjustable motor Taiwan Shenli;

Knife slope grinding

Knife slope 550W  Nanjing gaoqi(Taiwan company)

(Angle adjustable+/- 15°)


Grinding wheel 125 x 48x16*3mm

 knife edge grinding

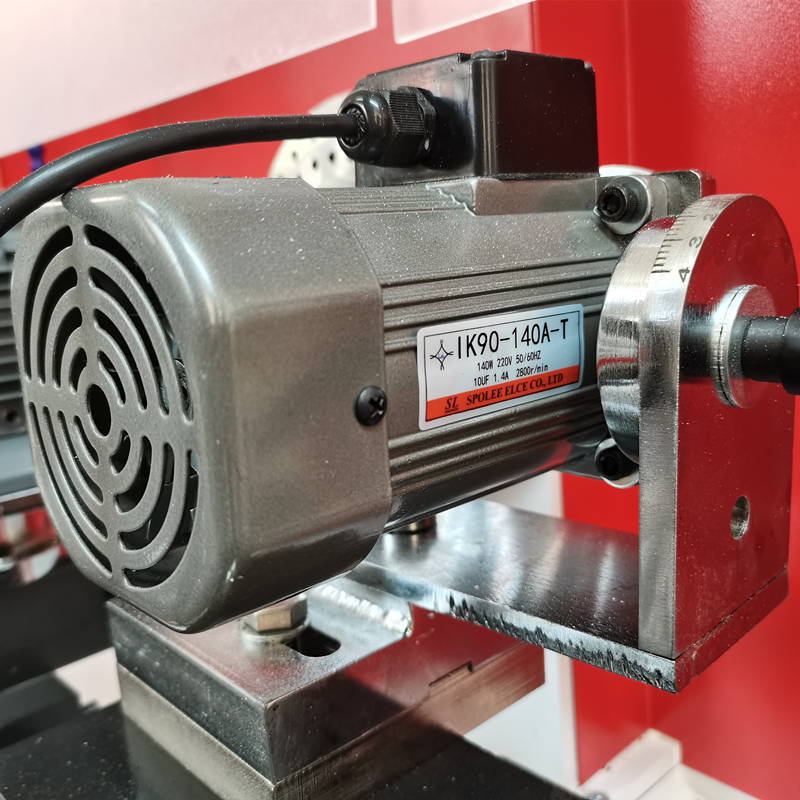

Knife edge 140W  Taiwan shenli (Angle adjustable+/- 15°)


Grinding wheel CBN 100 x 29x12*3mm

Cooling pump

60W

Round knife fixture

100/160(standard size can grind OD350, over this size is optional parts)

| Product Packaging

pack
真空包装



|

 Company Profile


Hexin Group is a joint-stock company integrating machinery and industrial blade manufacturing and sales. The company is headquartered in Kunshan, Jiangsu, and has established branches in Hangzhou and Tianjin. The group company is set up: Kunshan Hexin Precision Machinery Co., Ltd., Suzhou Shangdo Blade Co., Ltd.

Kunshan Hexin Precision Machinery Co., Ltd. is a mechanical equipment manufacturing company integrating R & D, production, sales and service. Main computer cutting machine, computer slicer, automatic slitting machine, heating film machine, precision bonding machine , Automatic die cutter, screen printing machine, etc. In 2013, he was rated as "National High-tech Enterprise" and has more than ten technical patents and has passed SGS factory qualification certification and EU CE certification. Products are exported to more than 50 countries and regions around the world, and customers have been well received.

详情页-昆山鹤鑫精密914-2-2副本

|

 Production Process

1300.2


修改后


上料加液压对比图


Certifications详情页-昆山鹤鑫精密通用-10





It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.


Model

HX-1300FQ

HX-1600FQ

Max feeding width

1300mm

1600mm

Power

6kw

6kw

Speed

80米/分钟 (m/min)

80米/分钟 (m/min)

Size

2400x2000x1300mm

2400x2300x1600mm

Weight

1200kg

1500kg

Max.unwinding diameter

800mm

800mm

Max.rewinding diameter

450mm

450mm

Precision

±0.1mm

±0.1mm

Power

380V 50Hz

380V  50Hz
