Customer Advanced Customized Water Spray Spinning Butyl Gel Molding Machine Rotary Die Cutting Machine

slitting machine with rotary die-cutting function and turret rewind is a new product, it equipped with high accurate rotary
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.
Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.
Size:
Availability:
Quantity:
  • HX-320B
  • Hexin

◎Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding

◎Photo Cell if necessary

◎Sucking device during material feeding process

◎Waste discharge shaft

◎Sheet cutting station

◎Rewinding station

◎Safety curtain device

◎Optional function: Conveyor belt device for full-cut use

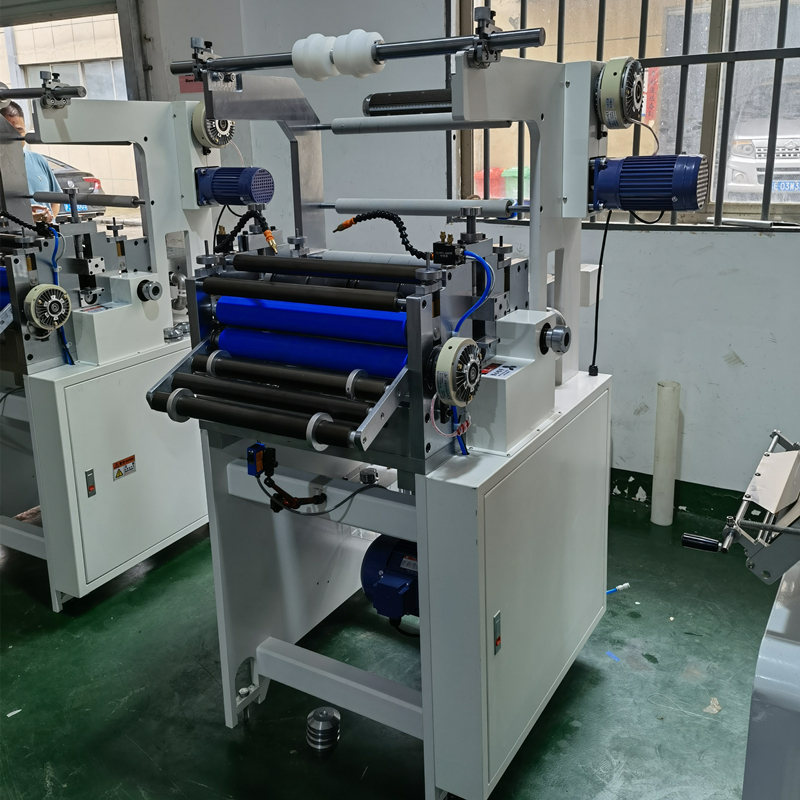

定制6


定制

定制3

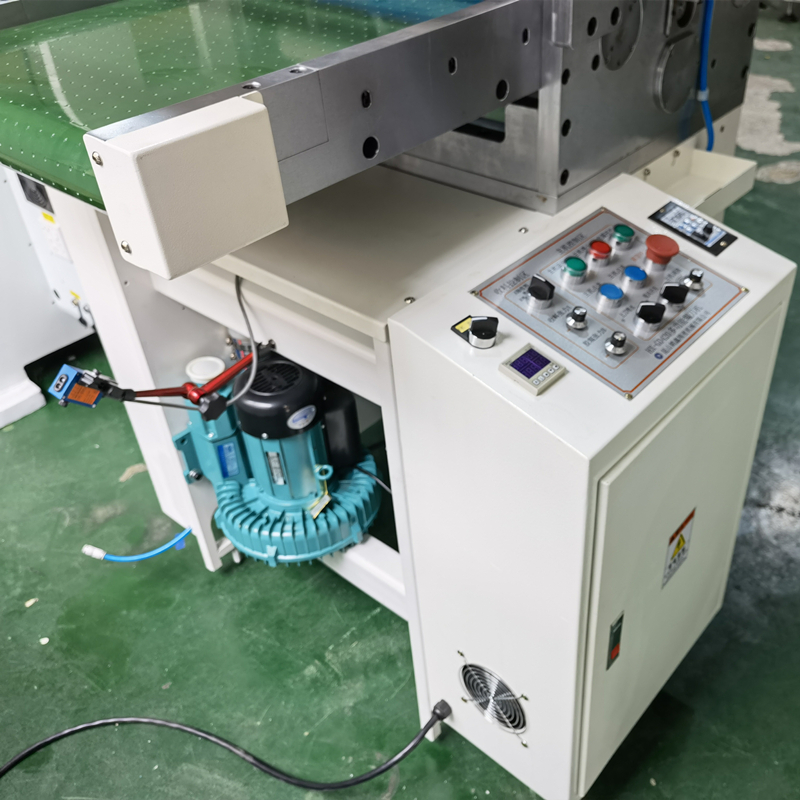

定制4

定制5

定制2

定制1

Model

320B


420B

Cutting speed

20-200 (t/m)


20-200 (t/m)

Max unwinding diameter

450mm


450mm

Max web width

320mm


420mm

Max mould cutting area

300x300mm


420x420mm

Orientation accuracy

±0.10mm


±0.10mm

Motor power

3kw


4kw

Power voltage

380v±10%


380v±10%

Machine weight

600kg



Measurement

1320*1020*1520mm


1320x1120x1520mm







Machine Features



slitting machine with rotary die-cutting function and turret rewind is a new product, it equipped with high accurate rotary
die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting, slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping, web guiding by photoelectric eye. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.

Features:
©EPC control system: photo cell
©Magnetic cylinder die cutting station
©Slitting station,min. slitting width 15mm
©Length counting function, automatic stop function when it reaches the set length.
©Piece counting function
©Waste discharge blower
©Magnetic brake & clutch
©Materials linking-up platform
©Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.




 Standard configurations:



1.Three laminating platform

2.One flatbed die cutter platform

3.One complete cutting platform

4.With three unwinding shaft,one rewinding shaft,two waste discharge shaft  (The place of unwinding and waste discharge shaft can change).

5.With two security light curtains

6.One set of straight knife



Application



1. Sticky production: Diversified electronic, electrical appliance, special mobile phone rubber

cushion, silicon rubber cushion, magic tape, electric conductive tape, powerful double side adhesive,

SUNEAST 3M, Sony special binding products

2. Dustproof materials: Cosmetic cotton, camera cotton, high density sponge, filtering sponge,

dust net and non-woven fabric

3. Shock absorbing products: EVA tape, rubber cushion, PORON cushion, 3M, inflammable

retardant EVA, high foam .

4. Insulation, EMI: Fireproof paper, aluminum foil, copper foil, PVC, PET, brown paper, sponge

sheath, pearl cotton sheath.
5.Heat insulation material: Silicon sheet, transparent mica, fiber cloth, heat insulation cotton (fabric).





Our Services



1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines

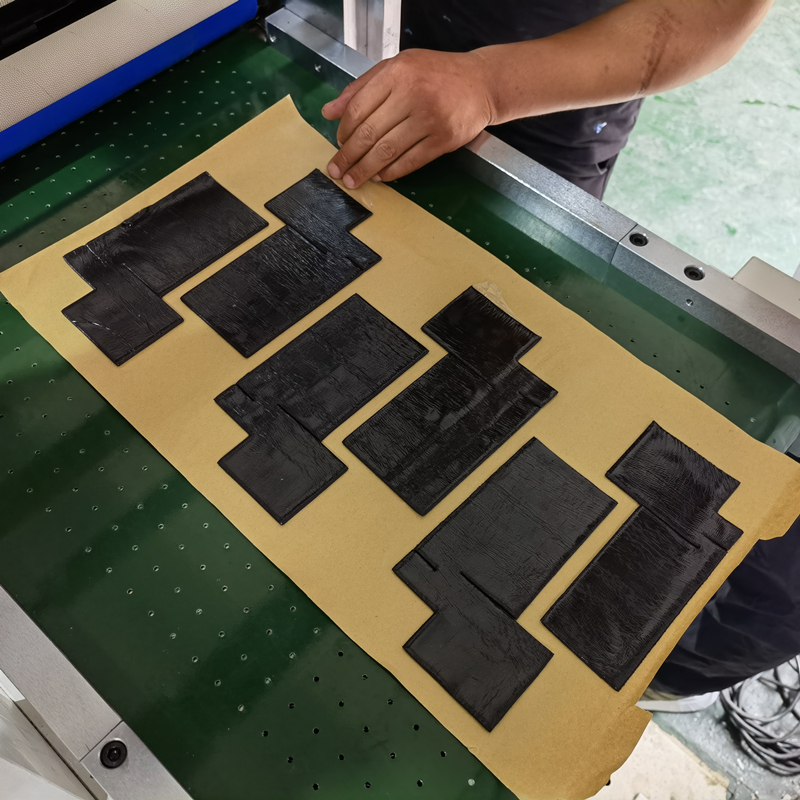

Samples show



 Here are some die cutting samples. our machine can die cut any shape you want,only by change the die cutting mould.

 定制8

  Trade Exhibition



_20170930151419





Packaging





 .jpg




1. Q: Are you a factory or trading company?

A: We are a factory and manufacturer



2. Q: Where is your factory located in ? How can I visit there?

A: Our factory is located in Kunshan which is very near from Shanghai, and our detailed

 address is: Factory 9, No. 157, Wulian Road, Yushan Town,Kunshan, Suzhou, Jiangsu.



3. Q: what are your main products?

A: Our main products are belt cutting machines, slitting machines, sheeting machines,

laminating machines and rotary die cutting machines.



4. Q: Which industries can use your machines ?

A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.





5. Q: How to control the quality in your factory ?

A: Quality is priority.  We control the quality of our products strictly, from the incoming

materials to the finished products. Our factory has obtained CE & ISO Certification





6. Q:If there are no machines available from your list, could  we customize  non-standard machines from you ?

A: Yes, we have our own professional design engineers, and can customize products

according to your requirement.




◎Glue-based products: 3C parts, foot pad, silicone, velcro backing, conductive tape, double-side tape,3M tape and all kinds of glue-based products.

◎Dustproof materials: cosmetic cotton, camera cotton, high density sponge, filtering sponge, dustproof filter, non-woven fabric, etc.

◎Shockproof materials: EVA tape, rubber cushion, PORON cushion,3M, flame-resistant  EVA, EPDM,etc.

◎Insulation/shielding materials : EMI Shielding material, fireproof paper, aluminum foil, copper foil, PVC,PET, k paper, sponge sheath, pearl cotton sheath and so on.

◎Heat-conductive/ heat-proof materials : silicon sheet, transparent mica, fiber cloth, heat insulation cotton and so on.

◎Other materials which are suitable for die cutting.


Model

HX-350B

HX-420B

Die Cutting speed

20-200次/分

20-200次/分

Max. unwinding diameter

450mm

450mm

Max. web width

350mm

420mm

Max. die cutting size

330x330mm

420x420mm

Precision

±0.10mm

±0.10mm

Power

3kw

4kw

Voltage

380v

380v

Machine weight

2200kg

2800kg

Machine size

2600x950x1400mm

2600x1050x1800mm
