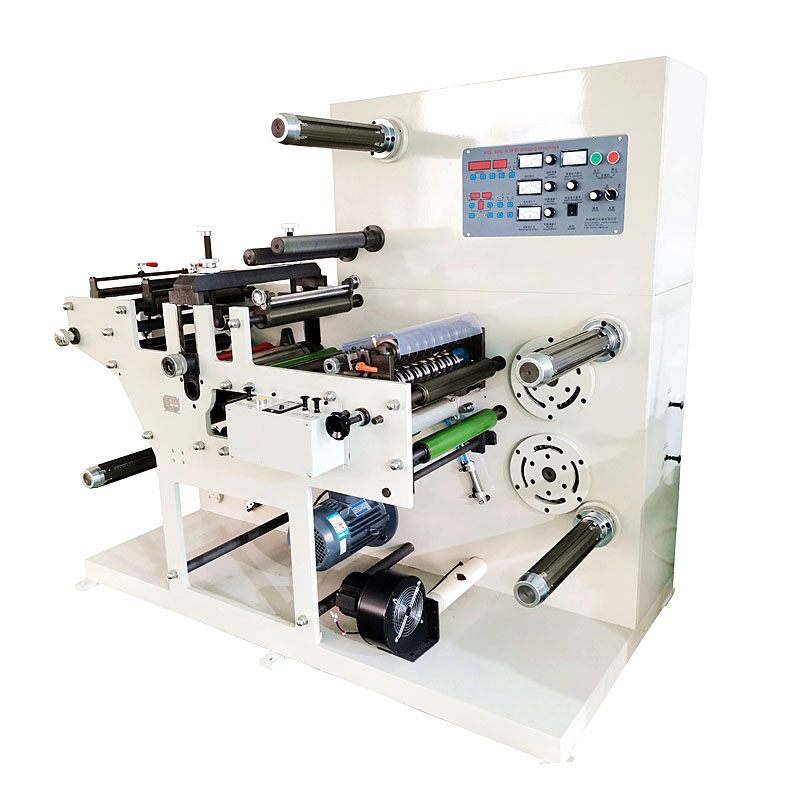

Rotary Automatic Adhesive Sticker Label Die Cutting Slitting Machine with Die Cut Uni

◎EPC control system: photo cell
◎Magnetic cylinder die cutting station

◎Slitting station,min. slitting width 15mm

◎Length counting function, automatic stop function when it reaches the set length.

◎Piece counting function

◎Waste discharge blower

◎Magnetic brake & clutch

◎Materials linking-up platform

◎Optional functions can be added accordingly, such as constant tension control system, magnetic cylinder, flexible dies.

1. Max web width: 320mm;
2. The tolerance: +/-0.2mm, precision: 0.1mm;
3. Material thickness range: 0.05-3mm;
4. This label rotary die cutting machine is a new product;
5. This machine is equipped with high accurate rotary die-cutting  system;
6. This machine is suitable for blank adhesive labels;
7. Die-cutting, slitting can be finished in one process;
8. This machine has functions of automatic meter counting,  automatic  stopping,  web guiding by a set of edge correcting device;
9. Compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc;
10. Manufacture experience: 10 years;
11. Export experience: 5 years.

Standard configurations:

One die cutting station

One slitting station

1 pc 3 inch unwinding shaft

2 pcs 3 inch rewinding shafts

Meter/number counter

a set of edge correcting device

8 pcs slitting knives

One magnetic brake

Two magnetic clutches

Two kinds of the die for your reference:

1. Engraving die

2. Magnetic cylingder+ flexible die

For blank label, screen protector, and various materials that need to be die-cut.

samlpe
