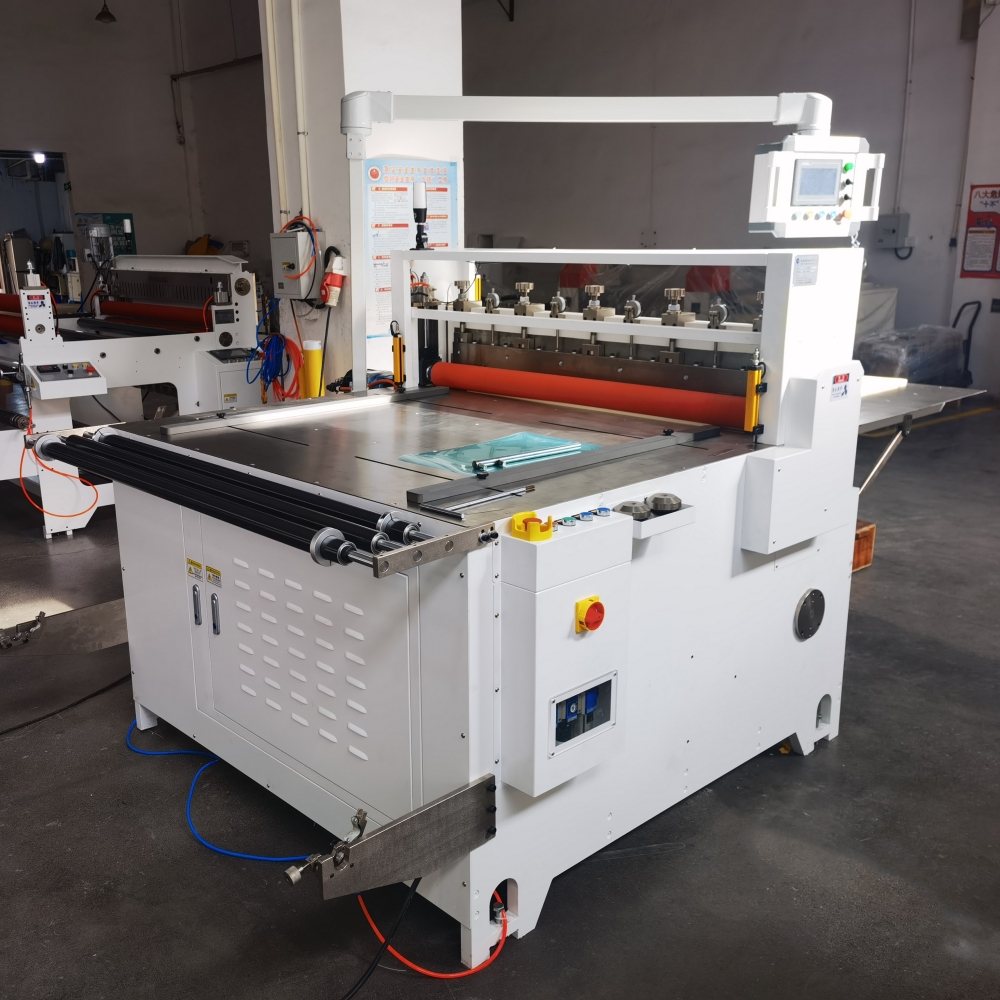

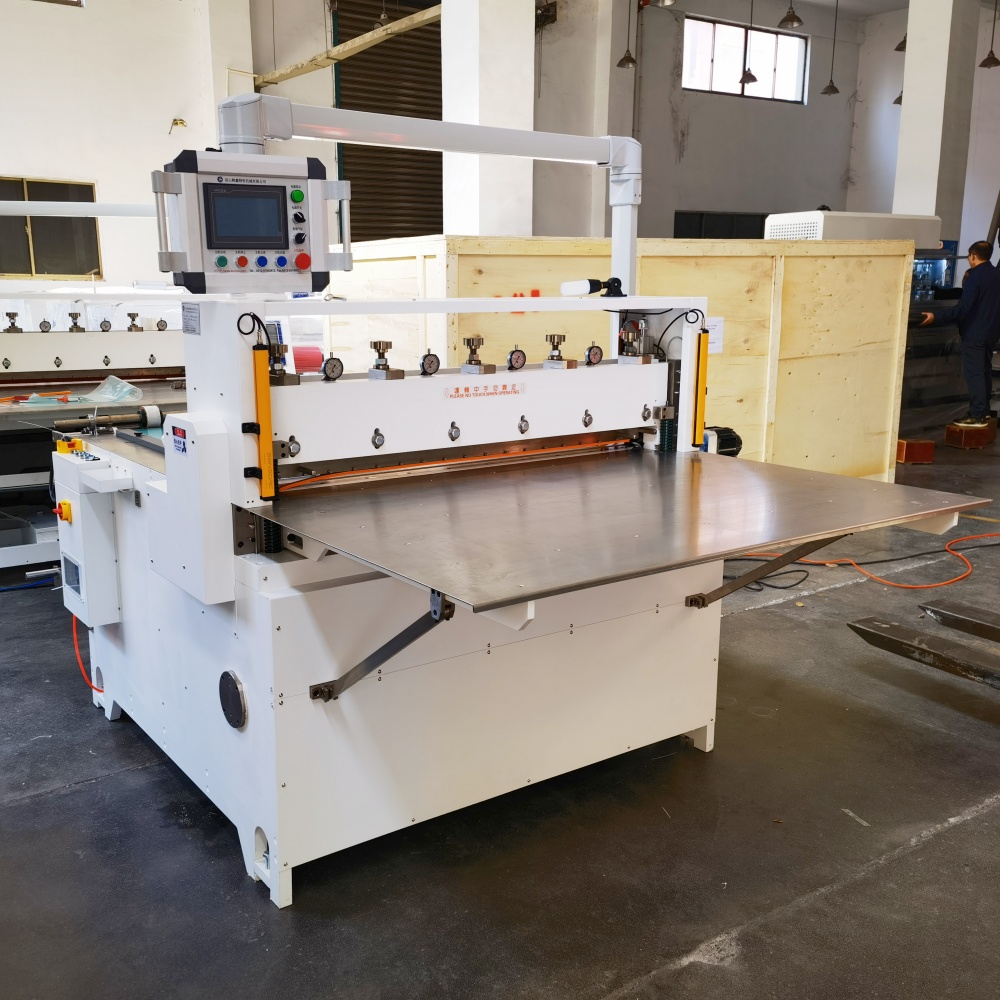

1250mm wide Rubber cube XY half Horizontal foam cutting machine

This machine employs man-machine + PLC system + pneumatic device. It cut the roll-type material into sheet-type material and then the sheet-type materials are cut into square shape in Y direction, this speeds up single XY cutting time and more efficient.
Size:
Availability:
Quantity:
  • HX-1250xy

  • Hexin

This machine employs man-machine + PLC system + pneumatic device. It cut the roll-type material into sheet-type material and then the sheet-type materials are cut into square shape in Y direction, this speeds up single XY cutting time and more efficient.

1250xy1250XY71250XY41250xy101250XY9

Application:

Sizing cutting for mat, cushion, silicon rubber, conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.

主要技术参数Main technical parameters:

型号/Model

HX-1250XY

电压/Voltage

380V

功率/Total Power

5KW

净重/N.W.

1300kg

毛重/GW.

1400kg

裁切宽度/Cutting Width

1-1200mm

裁切长度/Cutting Length

1200mm

装箱尺寸/Measurement

2900x2100x2000mm

Features :

1. The max width: 12500mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-40mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Hot cut or cold cut available
9. laminating functions are optional

10. This machine can process material in roll form or in sheet form



Application :

Sizing cutting for mat, cushion, silicon rubber,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.



Characteristics :

1. This hook and loop machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function
2. Cutting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The cutting length is accurate.
5. Operation is easy.
6. Waste rate is low.
7. Manufacturing experience: 30 years
8. Export experience: 20 years



After-service :

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

详情页-昆山鹤鑫精密914-2-2副本详情页-昆山鹤鑫精密通用-10详情页-昆山鹤鑫精密通用-11详情页-昆山鹤鑫精密通用-12




Sizing cutting for mat, cushion, silicon rubber, conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.


Model

HX-360Y

HX-500Y

Voltage

380V

380V

Total Power

1.3KW

1.3KW

N.W.

250kg

270kg

GW.

270kg

290kg

Cutting Width

1-360mm

1-500mm

Cutting Length

0.1-9999.9mm

0.1-9999.9mm

Measurement

840x1340x1070mm

980x1340x1070mm
