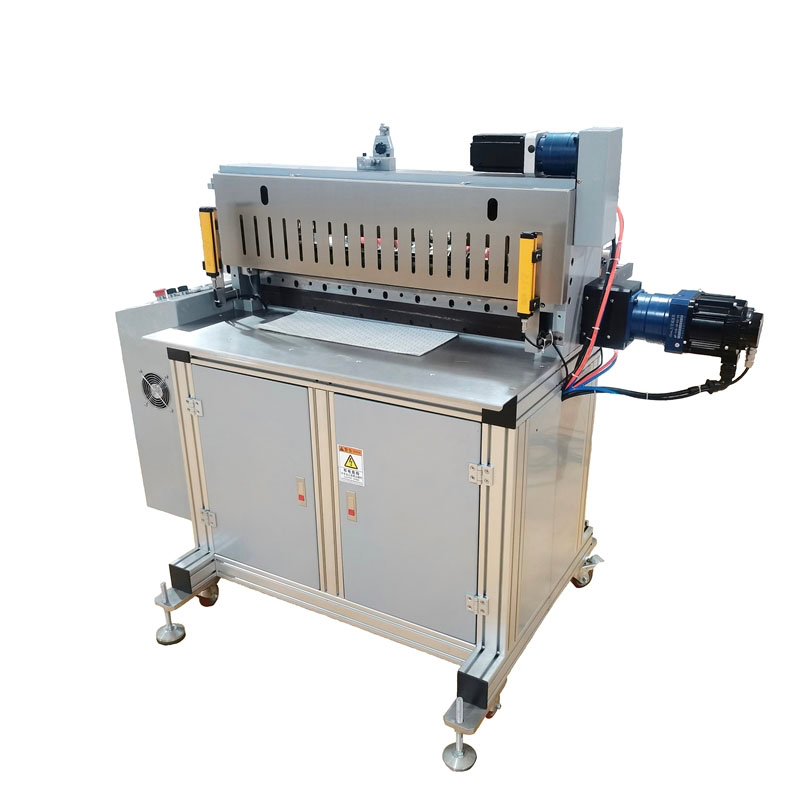

HX-800CQ factory automatic computerized 800mm paper cutting machine

It is suitable for cutting various coil materials such as PET, PC, PVC, PCB, FPC, paper, copper and aluminum foil, lithium battery film,flannel, metal flakes, etc. This machine uses servo motor to pull the material, imported PLC touch screen operation; cut length, quantity and speed can be set arbitrary. It can be equipped with statice liminator, feeding conveyor belt device, photoelectric point-finding device and functions such as start with material and stop without material. It can be used with other equipment simultaneously.
Size:
Availability:
Quantity:
  • HX-800CQ

  • Hexin

It is suitable for cutting various coil materials such as PET, PC, PVC, PCB, FPC, paper, copper and aluminum foil, lithium battery film,flannel, metal flakes, etc. This machine uses servo motor to pull the material, imported PLC touch screen operation; cut length, quantity and speed can be set arbitrary. It can be equipped with statice liminator, feeding conveyor belt device, photoelectric point-finding device and functions such as start with material and stop without material. It can be used with other equipment simultaneously.

800.1800.2800.3800.4


Model

HX-800CQ

HX-1600CQ

Voltage

380V

380V

Total power

2.2KW

3.3KW

Net weight

500Kg

800Kg

Cutting precision

±0.1mm

±0.1mm

Cutting length

0.1~9999.9mm

0.1~9999.9mm

Cutting width

1~800mm

1~1600mm

Cutting speed

100 cuts/min

100 cuts/min

Packing size

1560x1260x1700mm

2560x1260x1900mm
