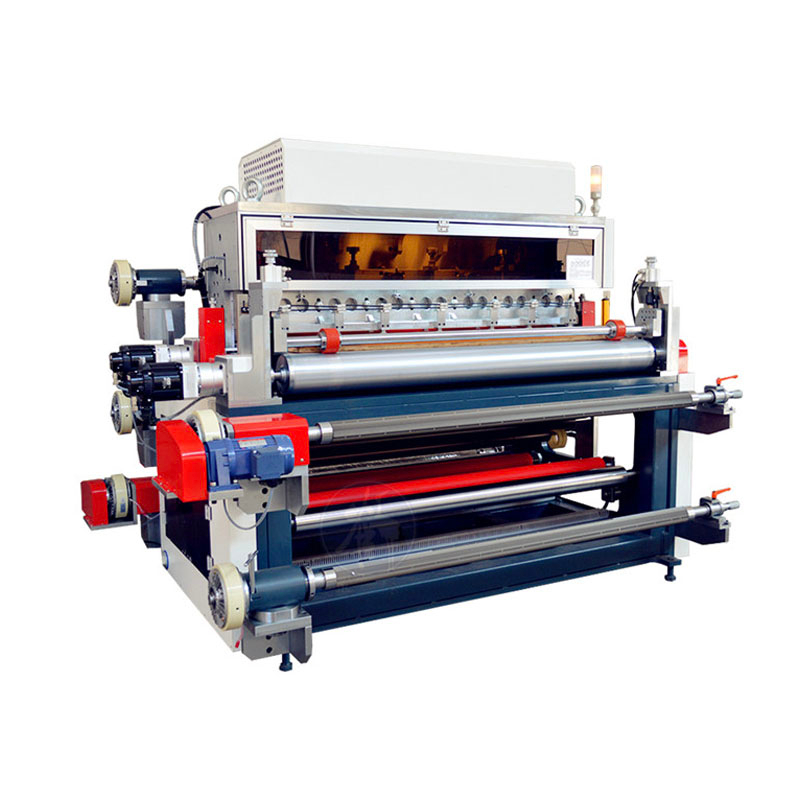

HX-1600JXS Jump kiss Cutting Machine

Features:
Double servos and four sets of rollers are used to pull materials synchronously to ensure the formation of gaps between finished materials, which can save up to 80% of raw materials!

Size:
Quantity:
  • HX-1300JXS
  • Hexin

Double servo motor and four sets of rollers are used to pull materials synchronously to ensure the gap between finished materials, and the maximum saving is 80% of raw materials

◎Taiwan Brand Servo motor & Japan brand PLC applied

◎Touch screen with the ability to save parameters

◎Cutting length and cutting speed adjustable

◎Both Kiss-cut and full-cut are available, 6 different cutting models are available for your choice.

◎Save raw materials for no waste discharging

◎Unwinding roll material diameter can be customized

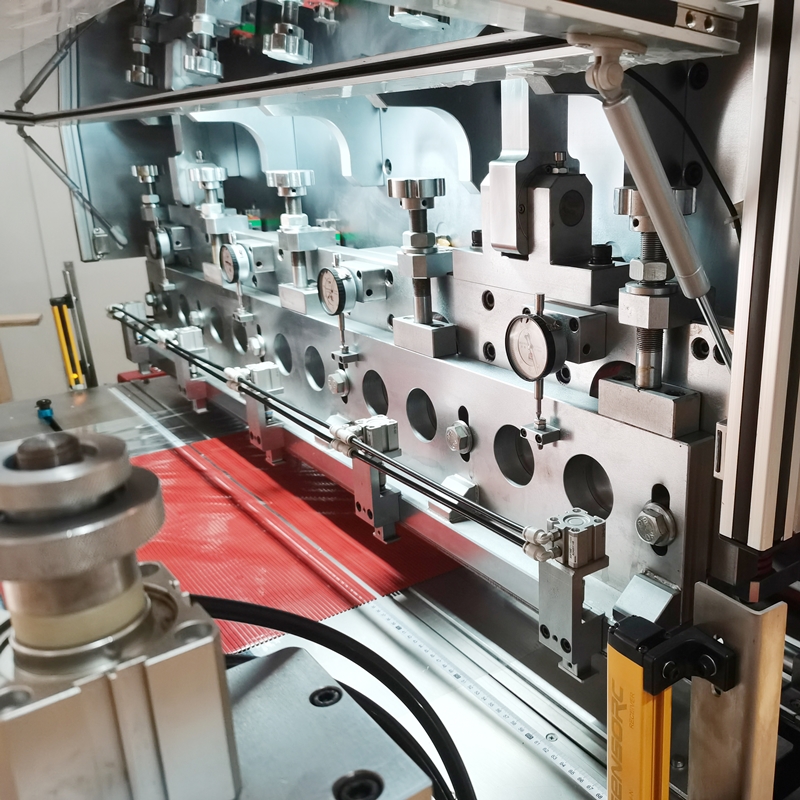

1300FQ1300FQ11300FQ21300FQ51300FQ7

specifications:





Model

HX-1600JXS

Max.unwinding dia.

350mm

Max.rewinding dia.

350mm

Max.web width

1600mm

Max.cutting times

180/min

Cutting peecision

±0.1mm

Voltage

380V 50Hz

Air supply

0.4-0.7MPa

Main power

2.2kw

Total power

6kw

Machine size

30000*2350*1530mm

Machine weight

4000kg

Features:

©Taiwan Brand Servo motor & Japan brand PLC applied

©Touch screen with the ability to save parameters

©Cutting length and cutting speed adjustable

©Both Kiss-cut and full-cut are available, 6 different cutting models are available for your choice.

©Save raw materials for no waste discharging

©Unwinding roll material diameter can be customized

Application:

Our machine is suitable for jump cutting for conductive fabric, foam, diffusion film, double-sided tape,etc.



Our machine is suitable for jump cutting for conductive fabric, foam, diffusion film, double-sided tape,etc.


Model

HX-1600JXS

Max.unwinding dia.

350mm

Max.rewinding dia.

350mm

Max.web width

1600mm

Max.cutting times

180刀/min

Cutting peecision

±0.1mm

Voltage

380V 50Hz

Air supply

0.4-0.7MPa

Main power

2.2kw

Total power

6kw

Machine size

30000*2350*1530mm

Machine weight

40000kg
