HX-800JXS1300 Automatic Label Foam Sticker PET Intermittent Half Jump Cutting Machine

Double servos and four sets of rollers are used to pull materials synchronously to ensure the formation of gaps between finished materials, which can save up to 80% of raw materials!
Size:
Availability:
Quantity:
  • HX-800JXS

  • Hexin

◎Taiwan Brand Servo motor & Japan brand PLC applied

◎Touch screen with the ability to save parameters

◎Cutting length and cutting speed adjustable

◎Both Kiss-cut and full-cut are available, 6 different cutting models are available for your choice.

◎Save raw materials for no waste discharging

◎Unwinding roll material diameter can be customized

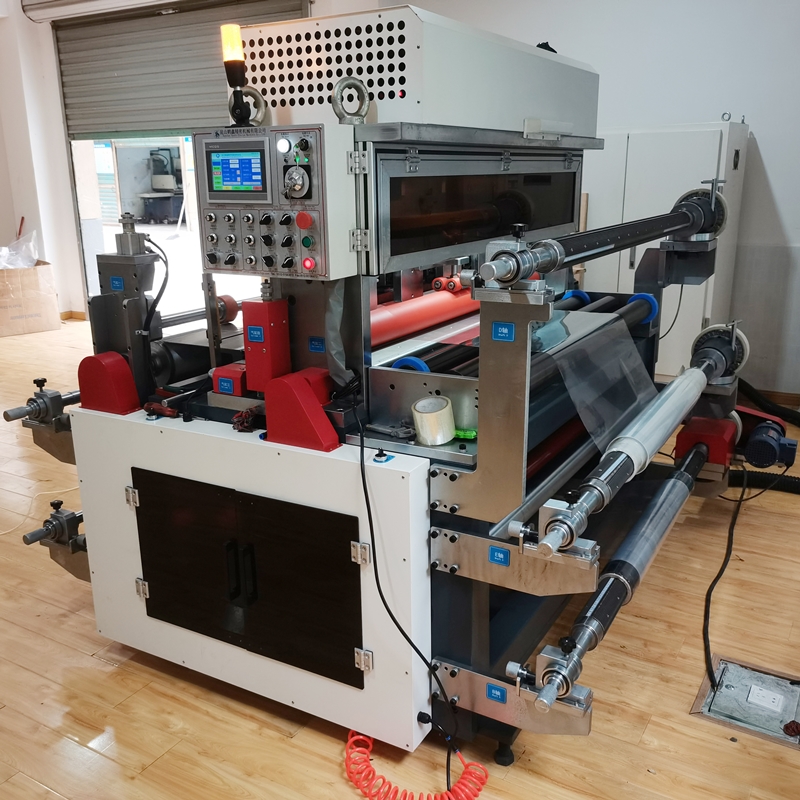

1300FQ1300FQ11300FQ41300FQ21300FQ7

Model

HX-800JXS

Voltage

380V

Power

4P

N.W.

1000kg

GW.

1100kg

Cutting Length

0.1-9999.9mm

Cutting Width

1-800mm

Measurement

2700*1400*1750mm





Machine Features



1. PLC+ touch screen+two servo controllers;

2. Six different working ways: several times of intermittent kiss-cut + one time of complete cut; several times of kiss-cut + one time of full cut; all in kiss-cut +rewinding; all in intermittent kiss-cut+rewinding; all in full cut; all in intermittently full cut;

3. Laminating and cutting can be finished at one time;

4. This machine is ergonomically designed.

5. This is a multifunctional machine that can cover your various needs;

6. High accuracy, fast reaction, and timely synchronization;

7. Significantly saving time and cost;
8. The operation is easy.
9. The waste rate is low.
10. Manufacturing experience: 10 years;
11. Export experience: years.

This machine is suitable for conductive fabric, foam, diffusing sheet, reflecting film, double-sided tape, PET, PC, PE insulation paper, copper/aluminum foil, etc.

samples

跳切样品

our services

1. The warranty period is 12 months;
2. A prompt reply within 24 hours;
3. Free operation training before delivering.

Our USP (Unique selling point)

Our factory is specialized in manufacturing and exporting cutting machines, slitting machines, laminating machines, and die cutting machines with high quality and competitive price. Free training and testing will be available before shipping.





  1)    Having factory and professional engineers;



  2)    Reasonable price;



  3)    Strict and perfect quality testing and control procedure;



  4)    Years of export experience;



 5)    Customized color and logo are acceptable;



  6)    Best service and punctual delivery;



FAQ



 1. Q: Are you a manufacturer or a trading company?

A: We are a manufacturer.



 2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in , No. 66, Kaigui Road, Yushan Town, Kunshan, Suzhou City, Jiangsu Province, China (Mainland). You can fly to Shanghai airport directly. We warmly welcome all our clients from home and abroad to visit us!



3. Q: What are your main products?

 A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.



4. Q: Which industries are your machines widely used in?

 A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.



5. Q: How does your factory do regarding quality control?

A: Quality is a priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.







Our machine is suitable for jump cutting for conductive fabric, foam, diffusion film, double-sided tape,etc.


Model

HX-800JXS

HX-1300JXS

Max.unwinding dia.

350mm

350mm

Max.rewinding dia.

350mm

350mm

Max.web width

800mm

1300mm

Max.cutting times

180刀/min

180刀/min

Cutting peecision

±0.1mm

±0.1mm

Voltage

380V 50Hz

380V 50Hz

Air supply

0.4-0.7MPa

0.4-0.7MPa

Main power

2.2kw

2.2kw

Total power

5kw

6kw

Machine size

2350*1750*1500mm

2700*2350*1530mm

Machine weight

2000kg

3800kg
