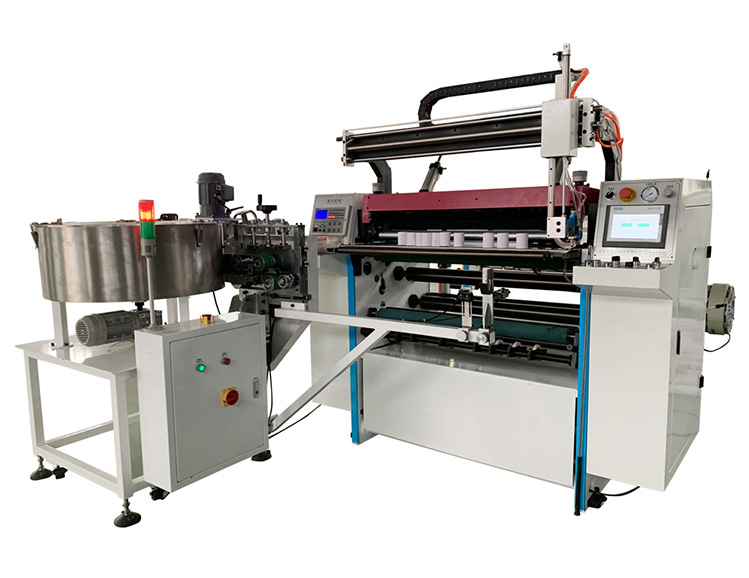

Thermal-POS Thermal Paper Jumbo Roll Rolling Slitting Rewinding Toilet Tissue Paper Cutting Making Machine

This machine has a photoelectric tracking correction system, the tension of the rewinding and unwinding is controlled by a magnetic powder clutch, the host frequency conversion speed regulation, the up and down movement of the rubber roller is controlled by the cylinder, and it can be laminated and slit at the same time, and it can also be laminated or slit separately. Accurate cutting, fast cutting speed, convenient operation and maintenance, etc.
Accurate cutting, fast cutting speed, convenient operation and maintenance, etc.
Size:
Availability:
Quantity:
  • HX-700fq

  • Hexin

◎Laminating function

◎EPC (edge positioning control):Unit: Photo Cell*2pcs

◎Waste discharge function

◎Magnetic brake and clutch

◎Length counting function, automatically stop after it reaches the length you set.

◎2 rewinding inflatable shafts, easy for unload materials.

Quotation :

Product

HX-700FQ high speed thermal paper roll cutting machine

Period of validity

30 days

Payment term

By T/T.

30% as deposit and the balance is paid before delivery to port.

Package

Stretch film+ wooden case

Delivery of shipment

15 days after received the deposit receipt.

Testing

To be tested before shipment with materials supplied in accordance with the above mentioned characteristics by buyer.

Assembling and training

In accordance with buyer’s request. If required, we can send our technician to buyer’s company for training; you will pay the return tickets, food, hotel and salary of USD100per days.

Guarantee

One year for the mechanical parts from delivery date(consist in repairing or replacing, free of charge, the defects parts, delivered free ex seller works, provided that damages are not caused by negligence or normal wear or mis-usage)

Machine Feature:

Components

Unwinding section

-Chain link automatic lift-up loading system

-Floating roller constant tension

- Two set Sensor

-Self expandable chuck

-Guide & Slide AMT from Taiwan

Slitting Section

-Choices of Razor cutter or Disc cutter

-Disc Cutter Assembly adopt the cam self-locking

-Cutter with adjustable and moveable blade base.

-Meter counter

Rewinding Section

-0.5”,1”,1.5” or as your request

-Center Rewinding technology

-Pressure roller

-Electromagnetic Clutch from Taiwan

Controlling Section

--Siemens PLC & HMI from Germany

-All the parameters are displayed on the monitor

-Low voltage electrical appliances all from Schneider

Trimmed Waste Edge

- Edge Waste Blower with Expulsion Tube

Optional

- Friction Differential Shaft for rewinding.

-Safety guard for the slitting device.

-Emergency Switches on the 4 corner of machine.



Maachine Parameters:

Max. Unwinding Width

700mm

Max. Unwinding Dia

1000mm

Max. Rewinding Dia

160mm

Min Slitting Width

25mm

Machine Max. Speed

110m/min

Main Power

2.95kw

Unwinding Shaft

3’’ (76mm) air expanding shaft

Rewinding Shaft

0.5’’, 1’’ or as your request

Weigth

1500kg

Demension

2000*1700*1500mm



Configuration:

Name

Model

Pieces

Remark

Computer System

PLC(Siemens)+4DA+7''Touch Screen(Taiwan)+

Synchronic(Korea)

1Set

Siemens+ Weinview

Motor


2 Sets

Siemens from Germany

Frequency Inverter


2 Sets

YASKAWA From Japan

Upper/Lower Round Knife


15 Sets


Brake



From Taiwan

Sensor


2 Sets


Tension control


3 Sets


Chuck

Self expandable chuck

1 Set

From Taiwan

Magnetic Clutch


2 Sets

From Taiwan

Low Voltage Electrical Switch



SCHNEIDER

Blower


1 Set

China

Cylinder



Airtac from Taiwan

Air Pressure Valve



SMC from Japan

Relay



CHNT


 slitting knife

proactive-lower-circular-knive

Packaging & Shipping

Our packing for film slitting machine is plywood case

pack

sample

分条机样品

Our Services

After-sale service for film slitting machine

1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training in factory before delivering machines

4.If our machines can't well meet your requirment ,we support customized machine .


Company Information

Brief Introduction


Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car,

and 18 minutes' away from Shanghai railway station by high-speed rail. The

traffic is very convenient.

We are specialized in developing, manufacturing, marketing and exporting

 microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong

technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.

with Japanese advanced design drawing and manufacturing technology,

our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service

employees who constitute a young and well-qualified team. Our belief is

 "people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.

Our products are widely applied in laminating, slitting and die cutting for

protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and SE for strings, strips, sheets, ropes, lines, belts, rolls, plates ,tubes, fibre , rubber,



PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.

Our factory


workshop for film slitting machine


The samples which use our machines to produce


Our products on Shanghai Expo about film slitting machine


Customers Visiting our Factory


If you coming to visit our factory ,you will be warmly welcomed .


Certifications

CE Certification

Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured .


Letter of Patent for film slitting machine

Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first .



FAQ


 1. Q: Are you a factory or trading company?
     A: We are a factory and manufacturer

 2. Q: Where is your factory located in ? How can I visit there?
     A: Our factory is located in Kunshan which is very near from Shanghai, and

         our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
         Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport

         or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.

3. Q: what are your main products?
    A: Our main products are belt cutting machines, slitting machines, sheeting

        machines, laminating machines and rotary die cutting machines.

4.Q: Which industries can use your machines ?
   A: All industries need to cut (include full cutting and kiss-cutting), slit

       laminate, rotary die cut raw materials can use our machines.

5.Q: How to control the quality in your factory ?
   A: Quality is priority.  We control the quality of our products strictly, from the

       incoming materials to the finished products. Our factory has obtained

       CE & ISO Certification

6. Q:If there are no machines available from your list, could  we customize

        non-standard machines  from you ?
    A: Yes, we have our own professional design engineers, and can customize

        products according to your requirement.


Model

HX-650FQ

Max. feeding width

650mm

Min.slitting width

20mm

Main engineer power

2.2kw

Speed

80m/min

Machine size

2400x1700x1300mm

Weight

1000kg
