HX-360SQ
Hexin

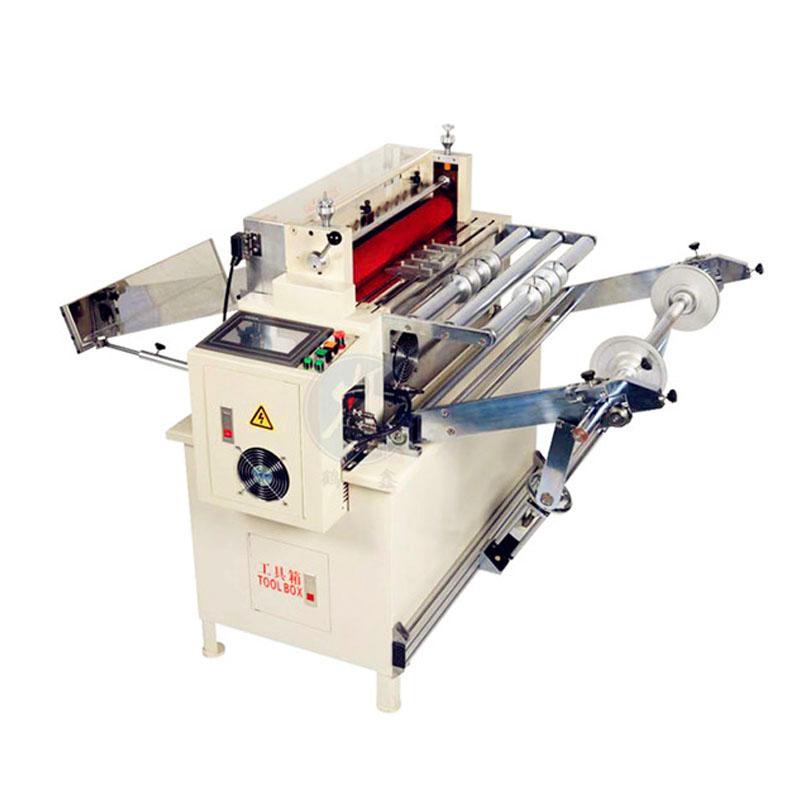

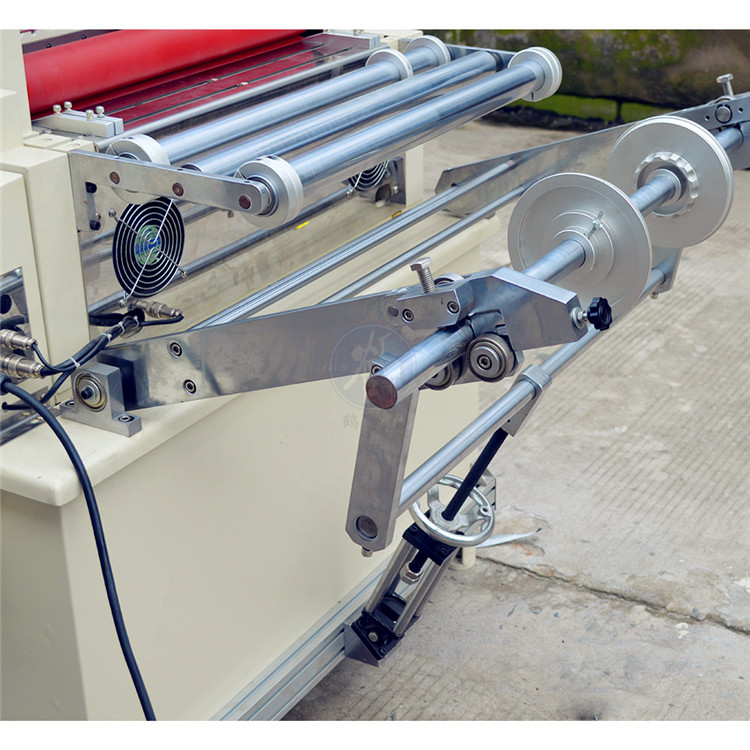

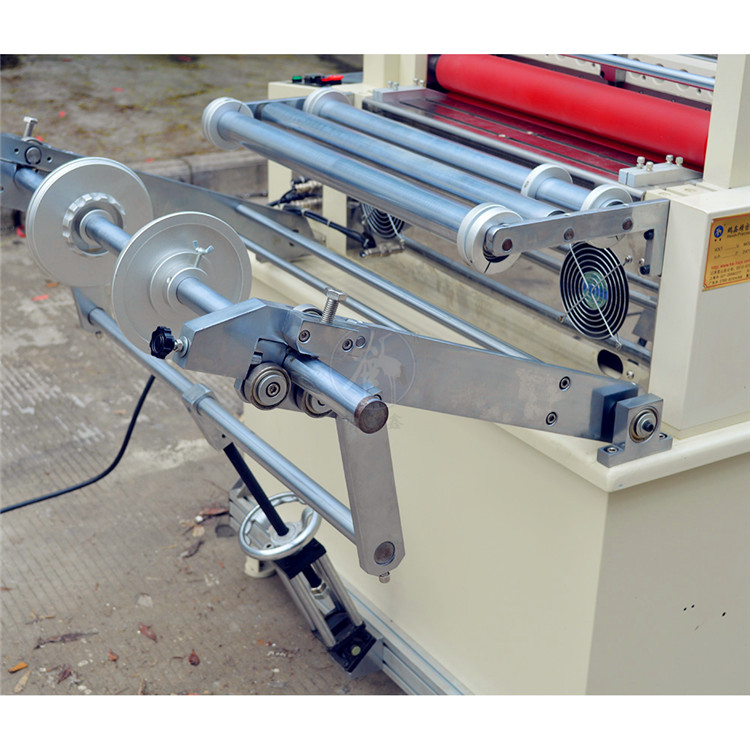

This machine employs man-machine + PLC system equipped with pneumatic device, with elevating type material rack ,so that the material to be cut aligns the material inlet ,and the material won't be bent and damaged.
specifications:
specifications | ||

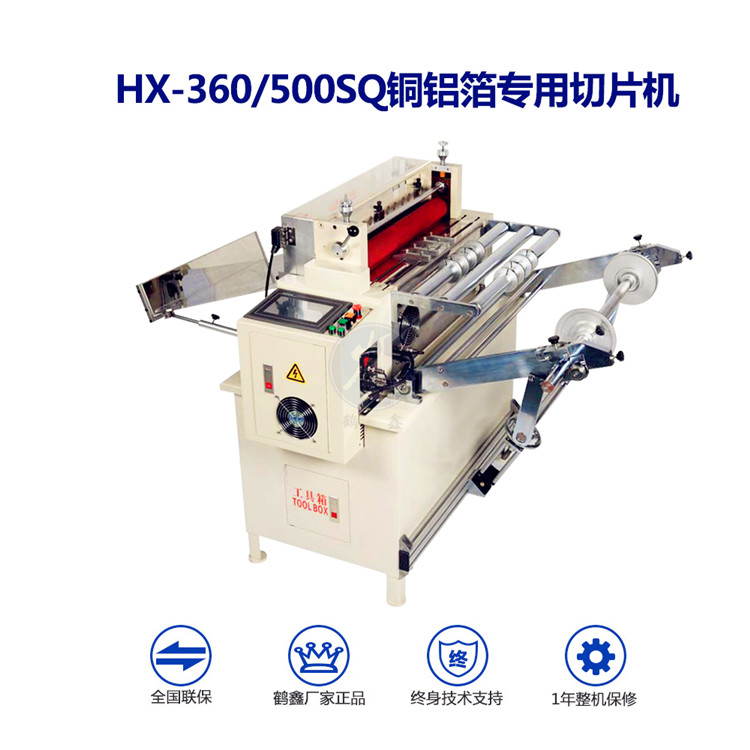

Model | HX-360SQ | HX-500SQ |
Voltage | 380V | 380V |
Total Power | 1.3KW | 1.3KW |
N.W. | 250kg | 270kg |
GW. | 270kg | 290kg |
Cutting Length | 0.1-9999.9mm | 0.1-9999.9mm |
Cutting Width | 1-360mm | 1-500mm |
Measurement | 840x1340x1070mm | 980x1340x1070mm |
Featuress :
This machine employs man-machine + PLC system equipped with pneumatic device, with elevating type
material rack ,so that the material to be cut aligns the material inlet ,and the material won't be bent and damaged.
Application:
Sizing cutting for conductive fabric, foam, reflector film, double-sided adhesive tape,
nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
Machine Features:
1. Max material width: 360mm;
2. Tolerance: 0.05mm, Precision: 0.1mm;
3. Material thickness range: 0.5mm-15mm;

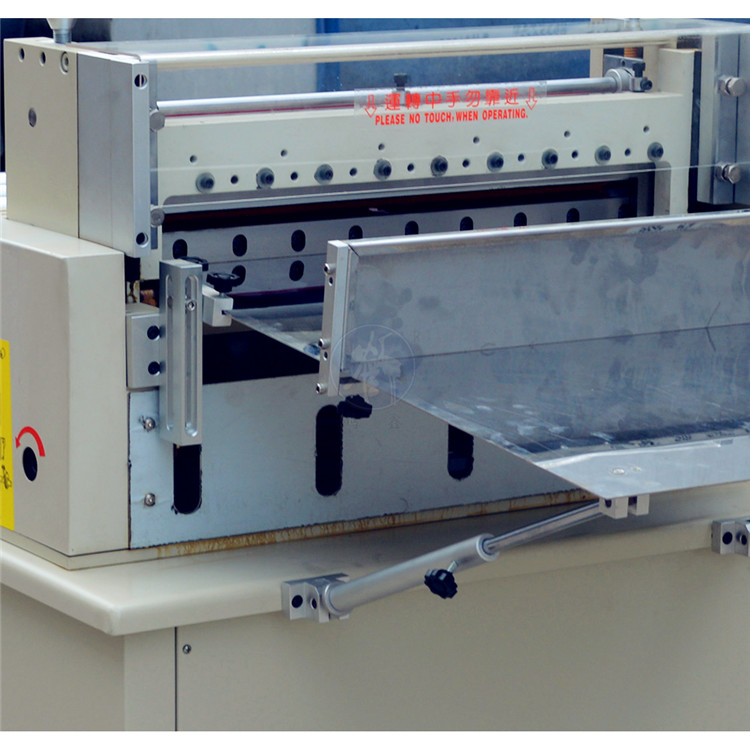

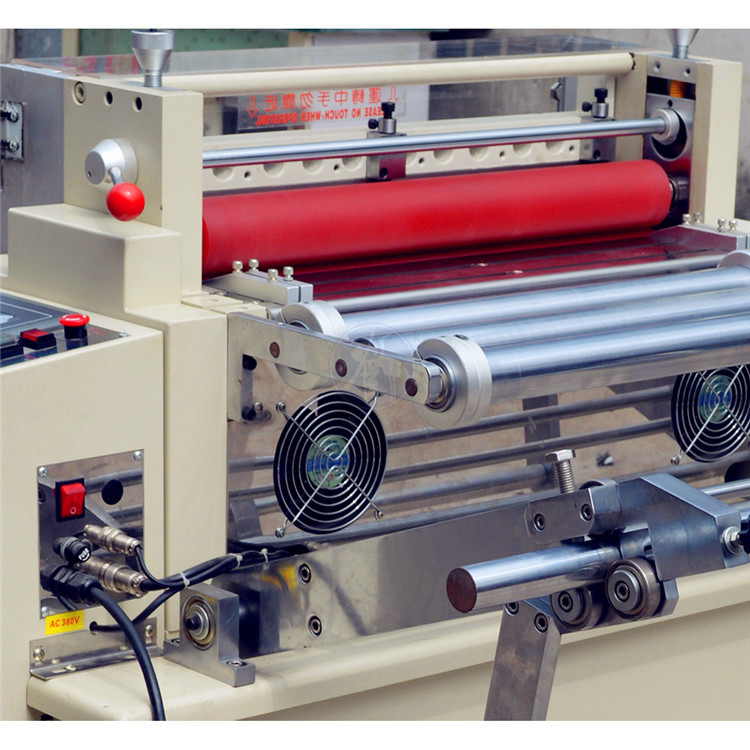

4. Two heating pipes are added in the heating copper, heating evenly and sealing a nice cutting edge;
5. A conbination of Human-Machine Interface, PLC and pneumatic device;
6. Cutting length is accurate with a servo motor;
7. Operation is easy with a touch screen in English display;
Options:
1.Cold cutting knife
2.Photoelectric tracing device
3.Conveyor belt
4.Static electricity eliminator
5.Suction device
We will try our best to meet your requirements.
