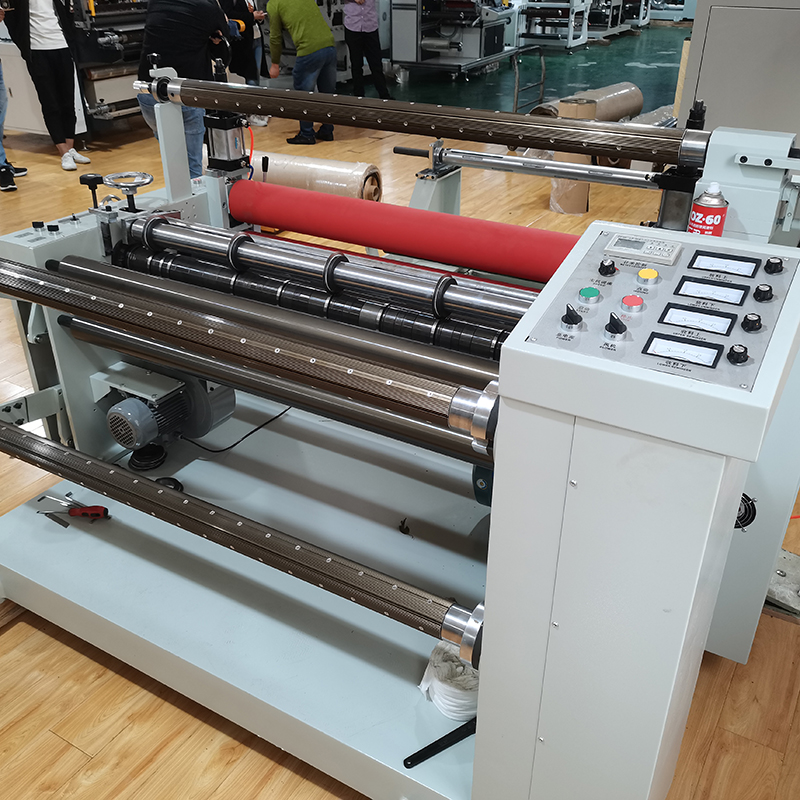

Aluminum Foil Laminating Slitting Rewinding Machine For Sale

This machine is a high-precision, high-sensitivity slitting equipment. Rewinding and unwinding use pneumatic shafts, and the tension is controlled by a magnetic powder clutch. The unwinding and deviation correction adopts ultrasonic, which realizes automatic detection, automatic correction and automatic meter counting. Accurate slitting, fast speed, convenient operation and maintenance, etc.
Size:
Availability:
Quantity:
  • HX-1300FQ

  • Hexin

1300fq1300fq41300fq21300fq3HX-1300FQ1600FQ-1◎Laminating function

◎EPC (edge positioning control) device:Ultrasonic sensor

◎Waste discharge function

◎Magnetic brake and clutch

◎Length counting function, automatically stop after it reaches the length you set.

◎2 rewinding inflatable shafts, easy for unloading materials.

Model

HX-1300FQ

HX-1600FQ

Max feeding Width

1300mm

1600mm

Main Engineer Power

4kw

6kw

Speed

80m/min

80m/min

Size

2400*2000*1300mm

2400*2300*1600mm

Weight

1200kg

1500kg

Max. Unwinding Diameter

600mm

800mm

Max. rewinding Diameter

450mm

450mm

Precision

±0.1mm

±0.1mm

Power

380V  3Phase

380V  3Phase

Mini. slitting width

8mm

8mm



Features



* Laminating function

EPC (edge positioning control) device:Ultrasonic sensor

Waste discharge function

Magnetic brake and clutch

Length counting function, automatically stop after it reaches the length you set.

2 rewinding inflatable shafts, easy for unloading materials.

The minimum slitting width: 8mm
* Material thickness range: 0.05-3mm



Features for aluminum foil slitting rewinding machine :
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years

Charatertistics and Functions:
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for aluminum foil slitting rewinding machine :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

CE Certification

Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured .

automatic aluminum foil slitting rewinding machine


Letter of Patent for aluminum foil slitting rewinding machine

Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first .

automatic aluminum foil slitting rewinding machine

The samples which use our machines to produce

FAQ


 1. Q: Are you a factory or trading company?
     A: We are a factory and manufacturer

 2. Q: Where is your factory located in ? How can I visit there?
     A: Our factory is located in Kunshan which is very near from Shanghai, and

         our detailed address is: Factory 9, No. 157, Wulian Road, Yushan Town,
         Kunshan, Suzhou, Jiangsu, China. If you fly to Shanghai hongqiao airport

         or Pudong airport, we can pick you up by car from there. We welcome all our clients, home and abroad, to visit us.

3. Q: what are your main products?
    A: Our main products are belt cutting machines, slitting machines, sheeting

        machines, laminating machines and rotary die cutting machines.

4.Q: Which industries can use your machines ?
   A: All industries need to cut (include full cutting and kiss-cutting), slit

       laminate, rotary die cut raw materials can use our machines.

5.Q: How to control the quality in your factory ?
   A: Quality is priority.  We control the quality of our products strictly, from the

       incoming materials to the finished products. Our factory has obtained

       CE & ISO Certification

6. Q:If there are no machines available from your list, could  we customize

        non-standard machines  from you ?
    A: Yes, we have our own professional design engineers, and can customize

        products according to your requirement.




It is applicable for slitting industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, 3C, leather, garment, plastic, etc.


Model

HX-1300FQ

HX-1600FQ

Max feeding width

1300mm

1600mm

Power

6kw

6kw

Speed

80米/分钟 (m/min)

80米/分钟 (m/min)

Size

2400x2000x1300mm

2400x2300x1600mm

Weight

1200kg

1500kg

Max.unwinding diameter

800mm

800mm

Max.rewinding diameter

450mm

450mm

Precision

±0.1mm

±0.1mm

Power

380V 50Hz

380V  50Hz
