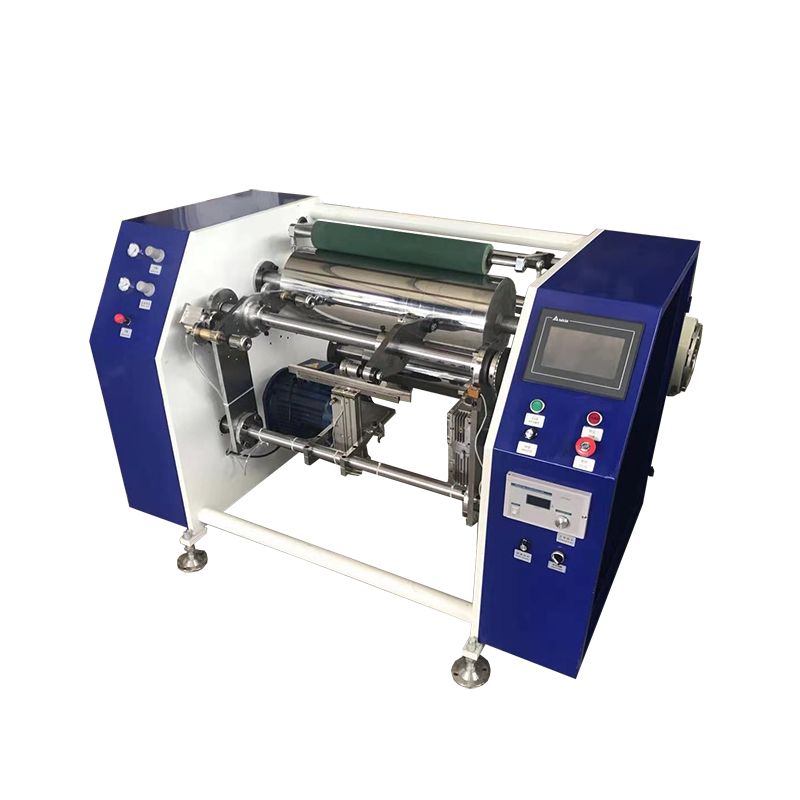

Aluminium Foil Household Foil Cling Film Roll Rewinding Machine

Hot sale aluminium foil household foil pvc pe cling film roll rewindning machineis multi-purpose model for rewinding both
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.
Size:
Availability:
Quantity:
  • HX-500L
  • Hexin

Hot sale aluminium foil household foil pvc pe cling film roll rewindning machineis multi-purpose model for rewinding both
aluminium house foil roll and cling film roll.
It is adopted surface rewinding method,it can rewind for small length for consumer roll,and large length 300meters(or more) for catering roll.
The machine is control by PLC programmer unit for very user friendly.
It is very high speed,by automatic start rewinding,when the gluing is done by manually,all step will be automatic fulfill,include automatic stop when reach length set,automatic exchange to the shaft.automatic cut off the finished roll.

Main Technical Parameter for film slitting machine :

Item

Quantity

Rewinding width

500MM

Parent roll diameter (MAX)

600MM or aluminum foil and 400MM for cling film

Finished roll diameter (MAX)

120MM

The maximum mechanical line speed

300M/MIN

Unwinding

Type: Manual, Core: 3"

Rewinding

Type: Friction, Core: customization

Correction

Jog

Motor Power:

Rewinding: 2.2KW; Flip: 0.37KW




Features for Two Shafts Aluminum Foil & Cling Film Rewinder :

Model and specifications

1, Model: HX-500L-2

2, Specifications

Rewinding width: 500MM

Parent roll diameter (MAX) :600MM for aluminum foil and 400MM for cling film

Finished roll diameter (MAX): 120MM

The maximum mechanical line speed: 300M/MIN

3, Unwinding

Type: Manual, Core: 3"

4, Rewinding

Type: Friction, Core: customization

5, Correction: Jog

6, Motor Power:

Rewinding: 2.2KW; Flip: 0.37KW


Charatertistics and Functions:
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain

Purpose for film slitting machine :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil,

OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.


Multifunctional laminating and slitting machine

Factory direct support customization

铝箔机3

铝箔机4

1627981275(1)

铝箔机2

铝箔机1

Provide customized service according to demand

真空包装

pack

Wooden case for export

.You can also choose vacuum packaging

1627980159(1)

sample

Model

HX-650FQ

Max. feeding width

650mm

Min.slitting width

20mm

Main engineer power

2.2kw

Speed

80m/min

Machine size

2400x1700x1300mm

Weight

1000kg
