HX-320DTB
Hexin
Standard function:
Feeding—laminating—discharging—laminating—discharging—laminating—discharging—laminating—rewinding

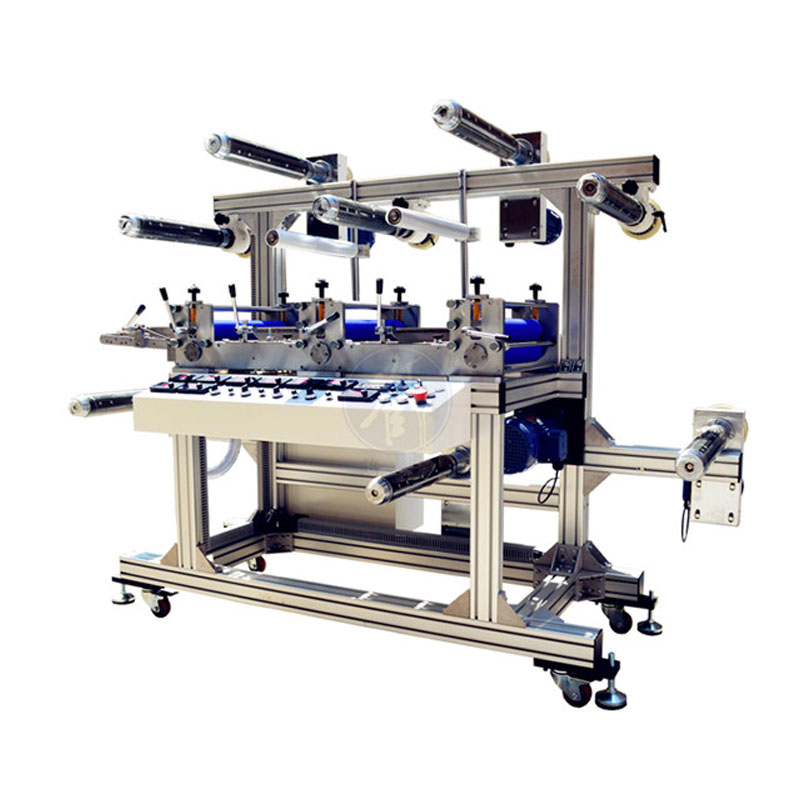

The multi-layer laminating rubber roller can be used for laminating and discharging multiple and multilayer materials. The laminating tension of the material is controlled by the magnetic powder tension controller. The waste discharging and rewinding are controlled by the servo, and the touch screen is adjusted, which can be intuitive , Accurately adjust its tension and speed, and have the power-off retention function, thereby reducing the tedious work of repeated adjustments and ensuring the flatness of the laminating material. Each group of laminating rubber rollers can independently adjust the pressure of the upper and lower rubber rollers , Clearance, simple and convenient operation.
Main technical parameters:
型号/Model | HX-320DTB | HX-420DTB |
放料轴/Unwinding shaft | 4 | 4 |
收料轴/Rewinding shaft | 4 | 4 |
最大贴合宽度/Max. laminating web width | 320mm | 420mm |
贴合速度/Laminating speed | 0-1500m/h | 0-1500m/h |
贴合精度/Laminating precision | ±0.1mm | ±0.1mm |
收卷直径/Rewinding diameter | 600mm | 600mm |
张力控制器/Tension controller | 4 | 4 |
收卷张力伺服/Rewinding tension control servomotor | 4 | 4 |
收卷张力伺服控制触摸屏/Rewinding tension control touchsrceen | 1 | 1 |
电源/Voltage | 220V | 220V |
机器重量/Machine weight | 400kg | 430kg |
机器外型/Machine size | 1600x1800x800mm | 2100x1250x1600mm |
主机功率/Power | 3.5KW | 3.5KW |
There are two models of this vinyl laminating machine :
Model | HX-320DT(7 shafts) | HX-420DT(7 shafts) |
Unwinding Shaft (sets) | 4 | 4 |
Rewinding Shaft (sets) | 3 | 3 |
Max Laminating Width(mm) | 320mm | 420mm |
Laminating Speed(times/h) | 0-1500m/h | 0-1500m/h |
Laminating Precision(mm) | ±0.1mm | ±0.1mm |
Winding Diameter(mm) | 600mm | 600mm |
Tension Controller (sets) | 7 | 7 |
Power Supply(v) | 220v | 220v |
Machine weight (kg) | 400kg | 430kg |
Machine Dimensions(mm) | 1600x1800x800mm | 2100x1250x1600mm |
Machine Power | 1200w | 1200w |
1. Max material width: 320mm;
2. Laminating thickness: Up to 5mm;
3. Laminating speed: 0-1500/min;
4. Tolerance: 0.05mm;
5. Precision: 0.1mm;
6. It adopts seven tension controller of magnetic powder to achieve smooth lamination;
7. Each pair rubber rollers can be adjusted separately to get right pressure and space;
8. Standard working procedure: Feeding---Laminating---Waste Discharging---Laminating---Waste Discharging---Rewinding;
9. Humanized design with castors, being able to moving;
10. We have different models of 5 shafts, 7 shafts, and 8 shafts to meet various demands;
11. It is easy and convenient to operate;
12. Holding CE and ISO certifications;
For materials that need to laminate into multilayers.
1. A warranty period of 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering;
Standard function:
Feeding—laminating—discharging—laminating—discharging—laminating—discharging—laminating—rewinding
The multi-layer laminating rubber roller can be used for laminating and discharging multiple and multilayer materials. The laminating tension of the material is controlled by the magnetic powder tension controller. The waste discharging and rewinding are controlled by the servo, and the touch screen is adjusted, which can be intuitive , Accurately adjust its tension and speed, and have the power-off retention function, thereby reducing the tedious work of repeated adjustments and ensuring the flatness of the laminating material. Each group of laminating rubber rollers can independently adjust the pressure of the upper and lower rubber rollers , Clearance, simple and convenient operation.
Main technical parameters:
型号/Model | HX-320DTB | HX-420DTB |
放料轴/Unwinding shaft | 4 | 4 |
收料轴/Rewinding shaft | 4 | 4 |
最大贴合宽度/Max. laminating web width | 320mm | 420mm |
贴合速度/Laminating speed | 0-1500m/h | 0-1500m/h |
贴合精度/Laminating precision | ±0.1mm | ±0.1mm |
收卷直径/Rewinding diameter | 600mm | 600mm |
张力控制器/Tension controller | 4 | 4 |
收卷张力伺服/Rewinding tension control servomotor | 4 | 4 |
收卷张力伺服控制触摸屏/Rewinding tension control touchsrceen | 1 | 1 |
电源/Voltage | 220V | 220V |
机器重量/Machine weight | 400kg | 430kg |
机器外型/Machine size | 1600x1800x800mm | 2100x1250x1600mm |
主机功率/Power | 3.5KW | 3.5KW |
There are two models of this vinyl laminating machine :
Model | HX-320DT(7 shafts) | HX-420DT(7 shafts) |
Unwinding Shaft (sets) | 4 | 4 |
Rewinding Shaft (sets) | 3 | 3 |
Max Laminating Width(mm) | 320mm | 420mm |
Laminating Speed(times/h) | 0-1500m/h | 0-1500m/h |
Laminating Precision(mm) | ±0.1mm | ±0.1mm |
Winding Diameter(mm) | 600mm | 600mm |
Tension Controller (sets) | 7 | 7 |
Power Supply(v) | 220v | 220v |
Machine weight (kg) | 400kg | 430kg |
Machine Dimensions(mm) | 1600x1800x800mm | 2100x1250x1600mm |
Machine Power | 1200w | 1200w |
1. Max material width: 320mm;
2. Laminating thickness: Up to 5mm;
3. Laminating speed: 0-1500/min;
4. Tolerance: 0.05mm;
5. Precision: 0.1mm;
6. It adopts seven tension controller of magnetic powder to achieve smooth lamination;
7. Each pair rubber rollers can be adjusted separately to get right pressure and space;
8. Standard working procedure: Feeding---Laminating---Waste Discharging---Laminating---Waste Discharging---Rewinding;
9. Humanized design with castors, being able to moving;
10. We have different models of 5 shafts, 7 shafts, and 8 shafts to meet various demands;
11. It is easy and convenient to operate;
12. Holding CE and ISO certifications;
For materials that need to laminate into multilayers.
1. A warranty period of 12months;
2. A reply within 24 hours;
3. A free training in our factory before delivering;
◎The machine can perform laminating, waste discharging for multiple strips and multi-layer material.
◎The laminating tensions of material is totally controlled by magnetic powder tension controller.
◎The rewinding and discharging shafts are controlled by serve motor .The tension and speed could be adjusted directly by touch screen .
◎The setting could be recovered in case of power off . It reduces lot's of unnecessary repeat operation .
◎Every laminating shaft can independently adjust the pressure and gap of upper and lower shaft . It guarantees the flatness of film laminating material.
◎The machine can perform laminating, waste discharging for multiple strips and multi-layer material.
◎The laminating tensions of material is totally controlled by magnetic powder tension controller.
◎The rewinding and discharging shafts are controlled by serve motor .The tension and speed could be adjusted directly by touch screen .
◎The setting could be recovered in case of power off . It reduces lot's of unnecessary repeat operation .
◎Every laminating shaft can independently adjust the pressure and gap of upper and lower shaft . It guarantees the flatness of film laminating material.
Model | HX-320DTB | HX-420DTB |
Unwinding shaft | 4 | 4 |
Rewinding shaft | 4 | 4 |
Max. laminating web width | 320mm | 420mm |
Laminating speed | 0-1500m/h | 0-1500m/h |
Laminating precision | ±0.1mm | ±0.1mm |
Rewinding diameter | 600mm | 600mm |
Tension controller | 4 | 4 |
Rewinding tension control servomotor | 4 | 4 |
Rewinding tension control touchsrceen | 1 | 1 |
Voltage | 220V | 220V |
Machine weight | 400kg | 430kg |
Machine size | 1600x1800x800mm | 2100x1250x1600mm |
Power | 3.5KW | 3.5KW |
Model | HX-320DTB | HX-420DTB |
Unwinding shaft | 4 | 4 |
Rewinding shaft | 4 | 4 |
Max. laminating web width | 320mm | 420mm |
Laminating speed | 0-1500m/h | 0-1500m/h |
Laminating precision | ±0.1mm | ±0.1mm |
Rewinding diameter | 600mm | 600mm |
Tension controller | 4 | 4 |
Rewinding tension control servomotor | 4 | 4 |
Rewinding tension control touchsrceen | 1 | 1 |
Voltage | 220V | 220V |
Machine weight | 400kg | 430kg |
Machine size | 1600x1800x800mm | 2100x1250x1600mm |
Power | 3.5KW | 3.5KW |
