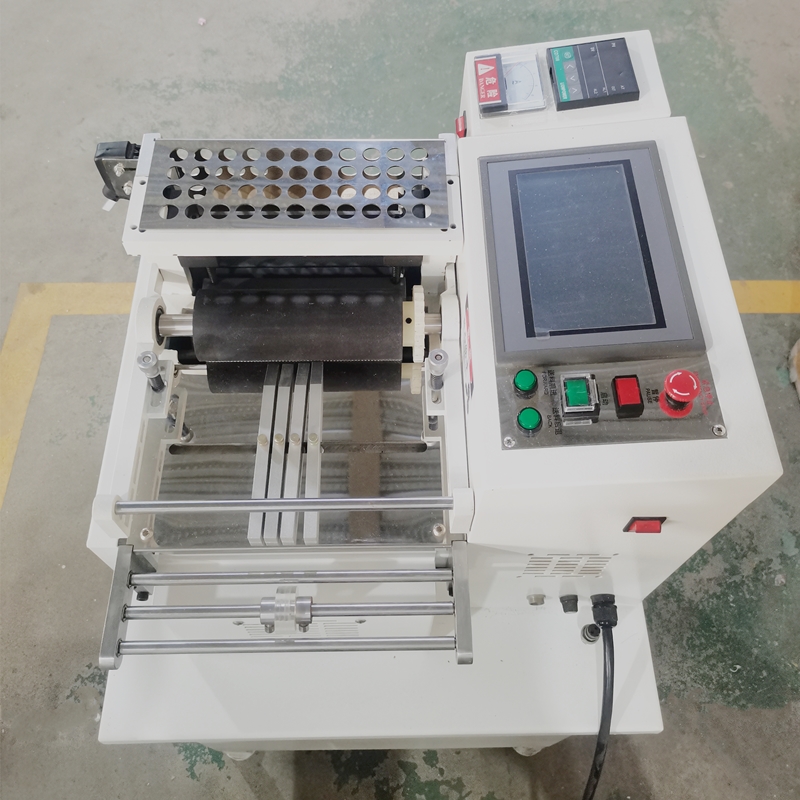

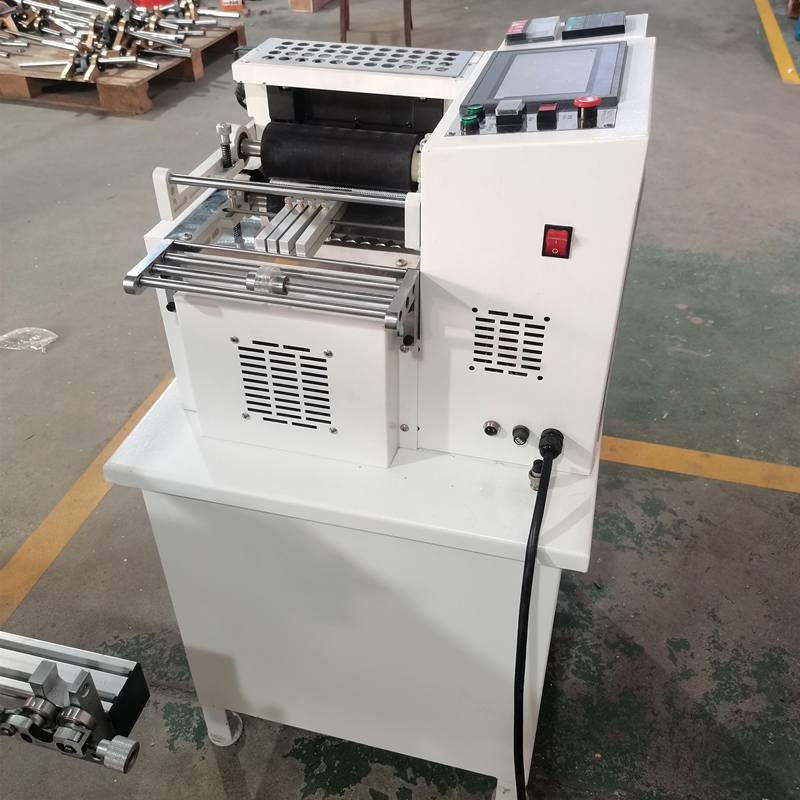

Hot Cutting Machine (cold/hot Model)

Features:
Microcomputer numerical control device is used to set the cutting length. The model design conforms to the ergonomic operation principle and is easy to operate.
Size:
Availability:
Quantity:
  • HX-160A

  • Hexin

◎Taiwan Brand Servo motor & Japan brand PLC applied

◎Roll to sheet cutting, max. web width 160mm

◎Touch screen with the ability to save parameters

◎Cutting Length adjustable, max. cutting length can be customized

◎Cutting tolerance can be +/-0.1mm based on materials.

◎Cutting edge can be sealed perfectly without any burrs.

◎Cutting temperature(max. temperature 680℃) can be adjustable based on different materials.

◎Cutting length and cutting speed adjustable.

160.5160.7160.6

Sizing cutting for PP belt, nylon belt, ribbon, woven belt and elastic band, safety belt, bandage, etc.


Model

HX-160A

Voltage

220V

Total Power

1.65KW

N.W.

90kg

G.W.

140kg

Cutting Width

1-160mm

Cutting Length

0.1-9999.9mm

Packing size

600x600x1150mm

Max.Heating temperature

680℃
