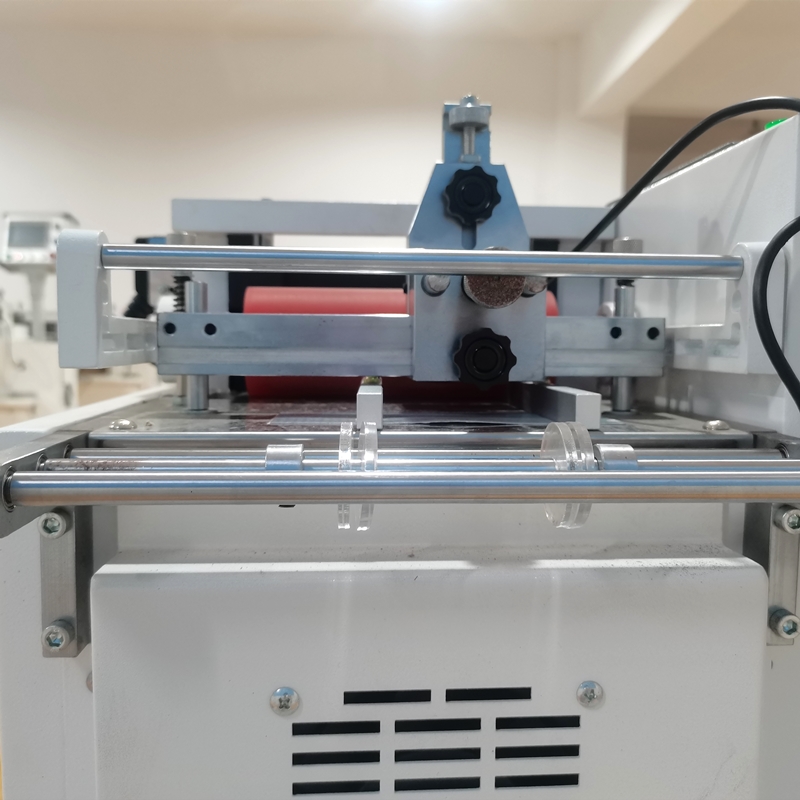

HX-160D Photoelectricity Tracing Cutting Machine

The microcomputer numerical control device is used to set the cutting length, and the cutting knife is equipped with a heating device, which can heat and consolidate the webbing cut without burrs. The design of the model conforms to ergonomic principles and is easy to operate.

Size:
Quantity:
  • HX-160D
  • Hexin

1. The max width: 160mm;
2. Tolerance: 0.05mm, Precision: 0.1mm;
3. Material thickness: 0.5mm-15mm;
4. Kiss cut or complete cut is available, and complete cut is for standard machine, kiss cut is an option.
5. Holding CE and ISO Certifications;

6. This machine employs a microcomputer controller to set cutting length, speed, and quantity, and it will memorize them when it runs next time;

7. This machine adopts a photoelectric tracing device to position, reducing errors;
8. This machine adopts a servo motor to make sure accuracy;
9. Operation is easy with a touch screen and English version display;
10. Waste rate is low;
11. Manufacturing experience: 10 years;
12. Export experience: 5 years.

X细节-1X细节-2160.3160.4

Model

HX-160D

Voltage

220V

Power

0.55KW

N.W.

83kg

G.W.

133kg

Cutting Length

0.1~9999.9mm

Cutting Width

1~160mm

Measurement

550x550x1000mm
