HX-650fq
Hexin

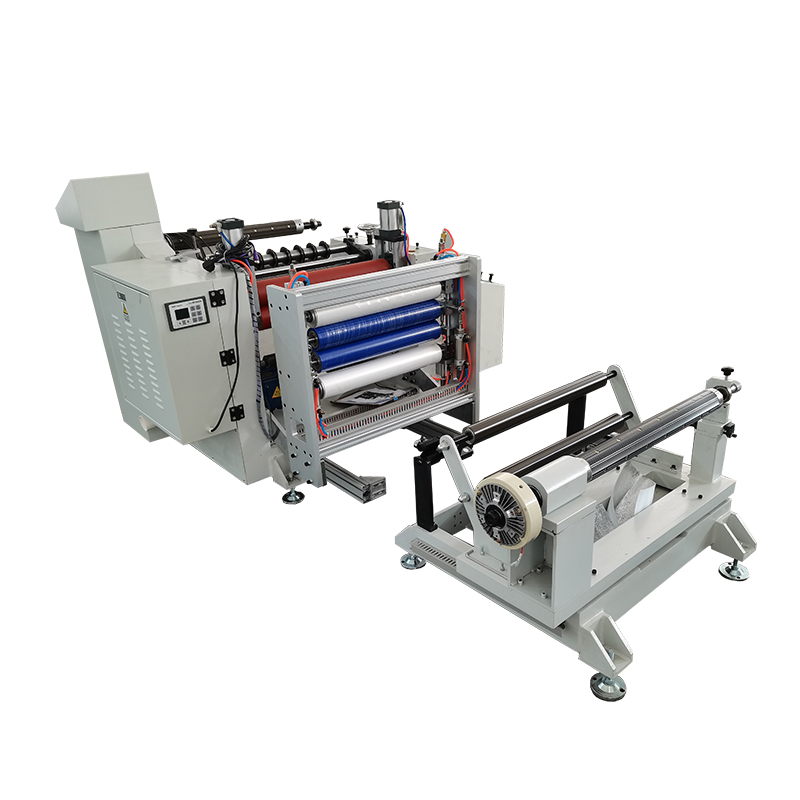

Optical material slitting machine, laminating, slitting and rewinding two materials. With hydraulic loading. Specially used for the slitting of PET, OCA, AB glue, PvC, release film, brightness enhancement film, diffusion film and reflective film. The tension control is uniform and adjustable, which meets the requirements of rewinding and unwinding, ensuring consistent material tightness, frequency conversion speed regulation, maintaining acceleration and smooth operation, good anti-scratch function, ensuring no mechanical scratches designed, automatic correction of ultrasonic servo motor, ensuring There is no left-to-right drift in product receipts.
◎Laminating function
◎EPC (edge positioning control):Unit: Photo Cell*2pcs
◎Waste discharge function
◎Magnetic brake and clutch
◎Length counting function, automatically stop after it reaches the length you set.
◎2 rewinding inflatable shafts, easy for unload materials.
Main Technical Parameter for film slitting machine :
Model | HX-650FQ |
Max Feeding Width | 650mm |
Main Engineer Power | 2.2kw |
Speed | 80m/min |
Size | 2400x1700x1300mm |
Weight | 1000kg |
Rewinding Diameter | 600mm |
Winding Diameter | 450mm |
Precision | ±0.1mm |
Power | 220V 50HZ |
Features for film slitting machine :
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 20years
Charatertistics and Functions:
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for film slitting machine :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil,
OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Multifunctional laminating and slitting machine
Six core advantages
Science and technology Manufacturing quality assurance
We strive to develop machinery Only to provide you with high quality products
It's not the most expensive, but it's easy to use
It is suitable for many industries, with wide range of uses, easy to use and customized on demand
Non standard customization
Fast delivery
Exquisite materials
Born for efficiency
Convenient operation and high efficiency
We give you more than just It's a laminating machine
Because quality is more reliable.
The strictness of every detail is for your convenience
01 Scope of application
03 Easy to operate
stainless steel slitting knife
Photoelectric tracking and correcting system
Provide customized service according to demand
Dust removal device
Wooden case for export
.You can also choose vacuum packaging
sample
