Factory Custom 650mm Oil Heating Slitting Laminating Machine

◎High and new technology applied, no circulating oil is used during heating process, oil-saving and environment-friendly.
◎Constant temperature control system can keep the laminating rollers temperature constant to achieve the best laminating effect .
◎High quality frequency control motor makes the laminating speedy stead and balanced..
◎Suitable for laminating: roll material + roll material / roll material +sheet material
◎This machine is equipped with mirror heated roller and imported high temperature resistance silicone roller. The space between rollers is controlled by pneumatic cylinder which is easy for adjustment. The large diameter of the rollers increases the contacting area of the materials, so the laminating effect is flat and smooth.
Size:
Quantity:
  • HX-650TH
  • Hexin

Features: 1. Adopt the mold temperature machine to control the constant temperature system to keep the temperature of the laminating roller stable, and achieve the best laminating effect, high efficiency and energy saving; 2. The high-performance variable frequency speed-regulating motor makes the bonding speed stable and efficient, the power is balanced, and the material is evenly fed; 3. It is suitable for laminating roll-to-roll and roll-to-sheet materials, one machine with multiple uses, saving financial resources, saving space, and super value return; 4. Adopt mirror heating roller and imported high temperature resistant silica gel (effectively control the phenomenon of degumming and gluing). The roller spacing is tightly pressed and tightly controlled by the cylinder, which is automatically adjusted and easy to operate. The large diameter of the upper and lower rollers increases the contact surface of the substrate, thereby providing a better bonding effect, and the surface of the material is smooth and smooth. 5. Laminating and slitting can be carried out at the same time, and it can also be laminating or slitting separately, with accurate slitting, fast slitting speed, convenient operation and maintenance, etc. Mold temperature machine 1 2 sets of discharging air shaft (3″) Receiving air expansion shaft (3″) 1 set Discharging magnetic powder brake 50N (Zhejiang) 2 sets   Receiving magnetic powder clutch 50N (Zhejiang) 1 set Unwinding tension control system (Zhejiang) 2 sets Receiving tension control system (Zhejiang) 1 set Correction system 1 set Fit the upper steel roller 1 set 1 set of lower rubber roller Aluminum guide roller (surface hard oxygen treatment) 1 set (5-6 pieces) Pressure roller pneumatic up and down system adjustable 1 set Electronic meter counter (Zhejiang) 1 set Static eliminator 1 to 2

650新款油加热

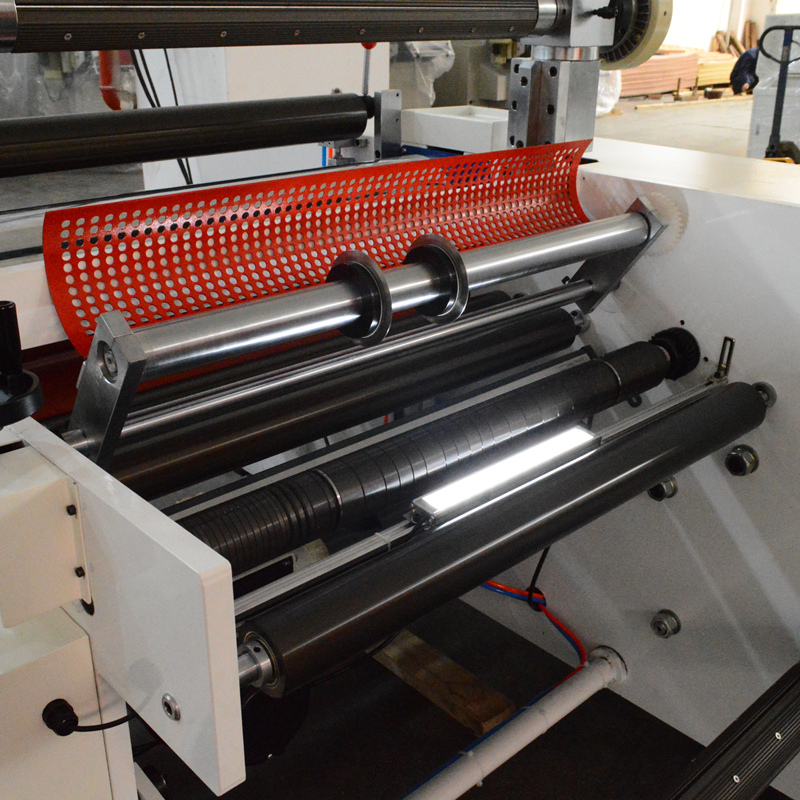

650油加热贴合

slitting knife

油加热覆膜机3

油加热覆膜机6

油加热覆膜机7

650

Photoelectric correction system

Model

HX-650TH

HX-1100TH

Laminating speed

0-30m/min

0-30m/min

Laminating precision

±1mm

±1mm

Max. Unwinding diameter

450mm

450mm

Max. Rewinding diameter

450mm

450mm

Voltage

380V

380V

Power

3KW

4KW

Measurement

1600x1400x1400mm

1900x1460x1580mm

GW

350kg

550kg
