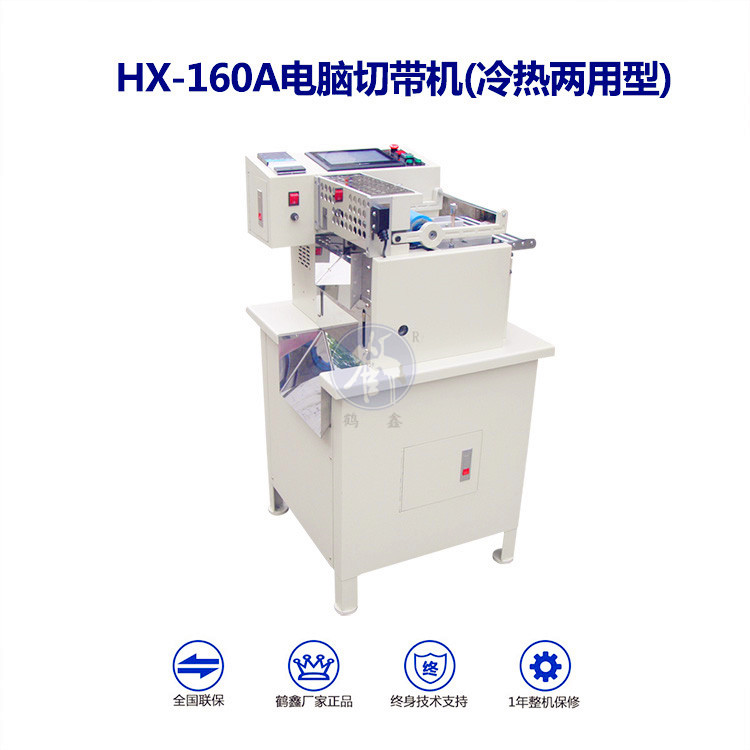

HX-160A
Hexin
◎Taiwan Brand Servo motor & Japan brand PLC applied
◎Roll to sheet cutting, max. web width 160mm
◎Touch screen with the ability to save parameters
◎Cutting Length adjustable, max. cutting length can be customized
◎Cutting tolerance can be +/-0.1mm based on materials.
◎Cutting edge can be sealed perfectly without any burrs.
◎Cutting temperature(max. temperature 680℃) can be adjustable based on different materials.
◎Cutting length and cutting speed adjustable.
Model | HX-160 |
Voltage | 220V(convertible) |
Power | 375W |
N.W. | 83kg |
G.W. | 133kg |
Cutting Length | 0.1~9999.9mm |
Cutting precision | ±0.1mm |
Cutting speed | 100-120cut/min(take 50 mm for example) |
Cutting Width | 1~160mm |
Measurement | 550x550x1000mm |
Features
1. Computer controlled PLC system, full automatic .
2. Owing to the servo motor the cutting length is accurate,high precision can reach 0.1mm.
3.Automatic to preset length, quantity & speed on touch screen, it is not erased .even if power off & on.
4.Cutting length and cutting speed tunable
5.the cutting speed is 100~120 cut per minute. (take 50mm long for example).
6. It stops automatically if materials run out during operation.
7.Cut up to 160mm wide material or multiple rolls(Cutting 2-3 tapes roll at one time)
8.cutting is neat due to using a cold cutter like scissors and blades are durable because they are
made of high-speed steel(HSS)
9.Full English LCD display,easy operating.and you can check the operation manual brochure, we will send together with the machine.
10.cutter safety guard included,no danger risk
11.adjustable pressure on feed roller for thin or smooth materials
12.this zipper cutting machine is including one unwinding material rack
Ideal for cutting heavy production to cut non adhesive material,such as various
tube,tape,label, hook and loop fastener ,conductive foam,fabric,metal foil,PVC,PET,OPP,PP,CPP,LDPE,
PVC sleeve,craft paper,insulation paper,trademark,PVC pipe,rubber hose,belt loop,
leather belt,plastic zipper etc.
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory
sample
