HX-600B Cutting Machine Has Automatic Unwinding Function

This model is for converting roll materials into sheets. You can choose different machine sizes based on your material web width, we have standard feeding widths for 160mm, 360mm,500mm,600mm,800mm,1300mm and 1600mm. Raw materials will be fed into the pressing rollers positively under the driving of the motor in the unwinding part, the dancing roller will have a buffer control during feeding process in order to make sure the materials will be fed smoothly. Optional parts can be added such as photo cell, electrostatic eliminator,sucking unit.
Size:
Availability:
Quantity:
  • HX-600B

  • Hexin

1. Max material width: 600mm;
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;

4. Cutting speed: 125 cut/min;
5. Both kiss-cut and complete cut are available by changing knife, complete cut is for standard machine, and kiss-cut is an option;

6. This machine employs a PLC to set cutting length, speed, and quantity, and it can memorize them when it runs next time;

7. It adopts an air shaft as the loading shaft, easy to loading and unloading material;

8. It has automatic unwinding function;

9. It adopts a servo motor to make sure accuracy;

10. A durable cutting knife made of high speed steel;
11. Operation is easy with a touch screen.

12 max unwinding diameter: 900mm

600.7_副本600.8_副本600.3_副本600.5_副本600.4_副本

Technical Parameters



Model

HX-600B

Cutting Length

0.1~9999.9mm

Cutting Width

1~1000mm

Power

2300W

Voltage

380V

N.W.

510kg

Measurement

1500x1800x1150mm




Machine Features

1. Max material width: 1000mm;
2. Tolerance: 0.05mm, Precision:±0.05mm;
3. Material thickness range: 0.5mm-15mm;
4. Cutting speed:100 cut/min;
5. Both kiss-cut and complete cut are available;
6. Complete cut is for standard machine, and kiss-cut is an option;
7. This eva sheet cutting machine has a conbination of  PLC and servo motor.
8.  It adopts an air shaft as the loading shaft;
9. Two accessories, static eliminator and conveyor belt, for you to choose
10. Automatic unwinding function;
11. Cutting length is accurate;
12. Operation is easy;
13. Waste rate is low;
14. Diverse functions satisfy your various requirements;
15. We offer superior-quality products and best service for you;
16. As a high-tech manufacturer,  we possess veteran engineers and professional sales team;
17. This eva sheet cutting machine price is competitive and reasonable;
18. Manufacturing experience: 10 years;
19. Export experience: 5 years.
Application
Size cutting for eva rolls, metal foil, PET, PC, PVC, PCB, FPC, lithium battery film, and all kinds of material in roll form.
Our Service
1. A warranty period of 12 months;
2. A prompt reply within 24 hours;
3. Free operation training before delivering.
Details of this eva sheet cutting machine :
 Touch Screen

 Cutting Knife
 600.7_副本
Packaging:
 pack

Exhibition:
 news副本

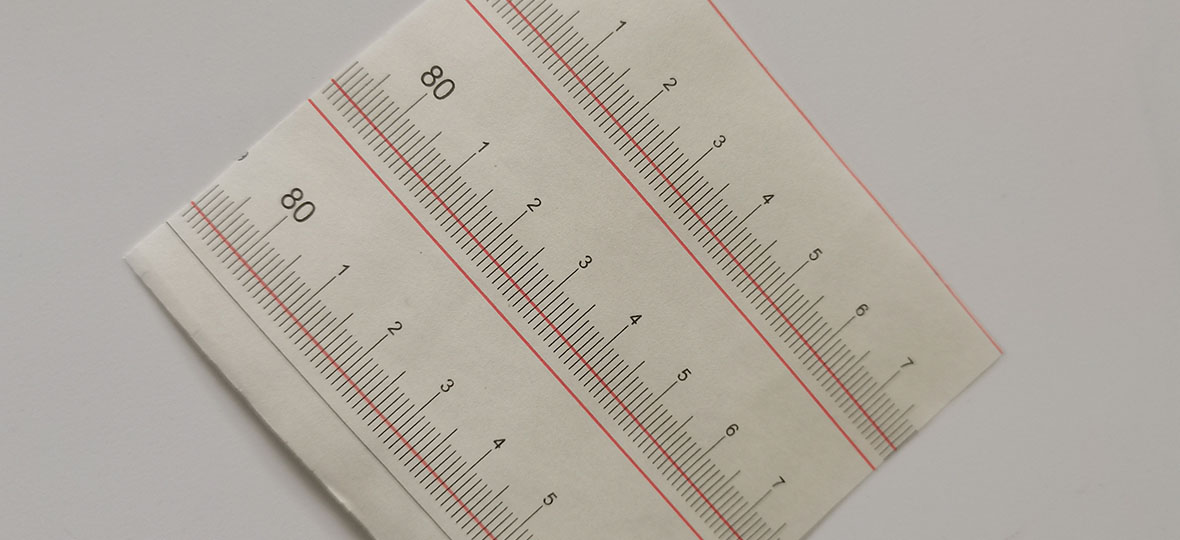

Samples Show
s1-1
FAQ

1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer.

2. Q: Where is your factory located in? How can I visit there?
A:Our factory is located in Building 9, No. 157, Wulian Road, Yushan Town, Kunshan, Suzhou City, Jiangsu Province, China (Mainland). You can fly to Shanghai airport directly. We warmly welcome all our clients from home and abroad to visit us!

3. Q: What are your main products ?
 A: Our main products are slitting machines, sheeting machines, laminating machines and Die cutting machines.

4. Q: Which industries are your machines widely used in ?
 A: All industries need to cut (include full cutting and kiss-cutting), slice, laminate, rotary die cut raw materials can use our machines.

5. Q: How does your factory do regarding quality control?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification.

6. Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirements.




Sheet cutting aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.


Model

HX-600B

Cutting Length

0.1~9999.9mm

Cutting Width

1~600mm

Precise

±0.05mm

Cutting speed (0-180MM length)

-125 cuts/min

Power

1500W

Voltage

380V

Net weight

320kg

Measurement

1500*1300*1200mm
